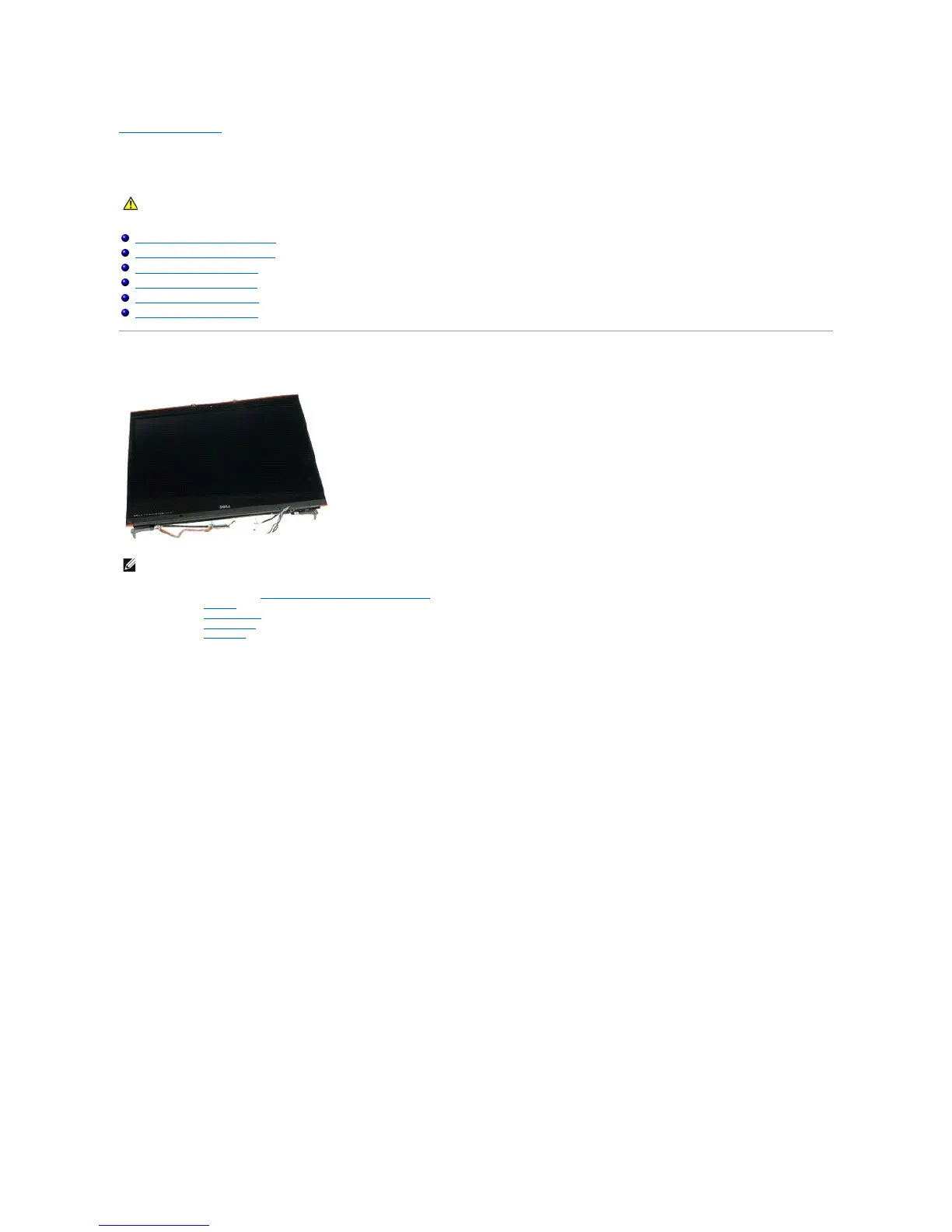

Dell Precision M6500 - Removing the Display Assembly

Back to Contents Page
Display Assembly
DellPrecision™WorkstationM6500ServiceManual
Removing the Display Assembly
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
3. Remove the access panel.
4. Remove the hinge cover.
5. Remove the keyboard.
6. Disconnect the wireless antenna cables from the wireless cards.
7. Remove the wireless antenna cables from their routing guides.
8. Remove the four screws that secure the display assembly to the computer.
9. Turn over the computer and open the display.
10. Disconnect the two display cables from the connectors on the system board.
11. Remove the screw that secures the display assembly to the computer.
12. Loosen the captive screw and remove the cable retention bar that secures the display assembly to the computer.
13. Disconnect the display cable from the connector on the computer.
14. Remove the antenna cables from their routing guides.
15. Remove the screws that secure the display assembly to the computer.
16. Remove the display assembly from the computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
Removing the Display Assembly
Replacing the Display Assembly
Removing the Display Bezel
Replacing the Display Bezel
Removing the Display Panel
Replacing the Display Panel
NOTE: You may need to install Adobe®Flash®Player from Adobe.com in order to view the illustrations below.
