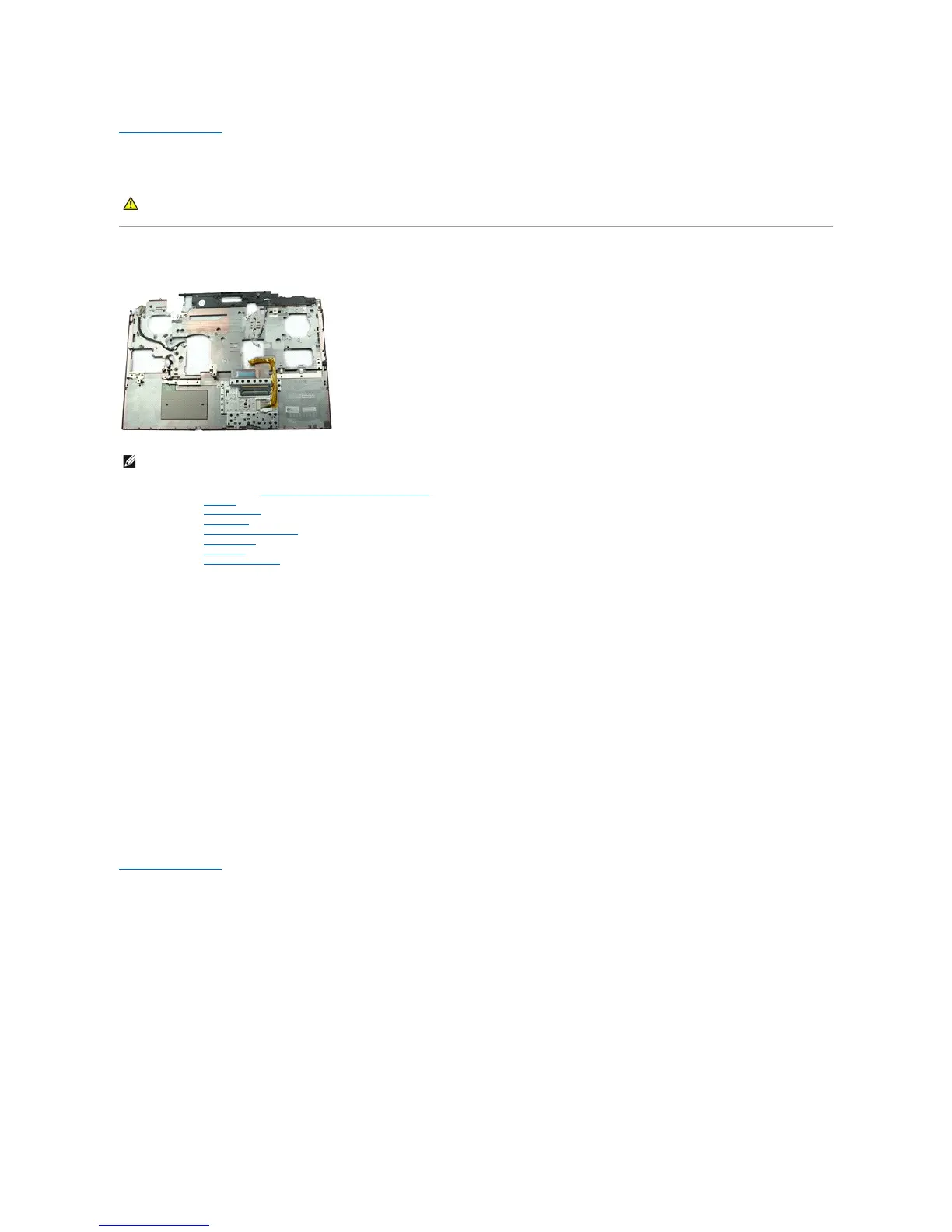

Palm Rest
DellPrecision™WorkstationM6500ServiceManual
Removing the Palm Rest
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
3. Remove the access panel.
4. Remove the hard drive.
5. Remove the secondary hard drive.
6. Remove the hinge cover.
7. Remove the keyboard.
8. Remove the display assembly.
9. Remove the screws that secure the palm rest to the bottom of the computer.
10. Disconnect the display cable and right IO-panel and fan cables from the system board.
11. Disconnect the left IO-panel and fan cables from the system board.
12. Remove the screws that secure the palm rest to the computer.
13. Gently pry the palm rest and remove the palm rest from the computer.
Replacing the Palm Rest
To replace the palm rest, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe®Flash®Player from Adobe.com in order to view the illustrations below.
