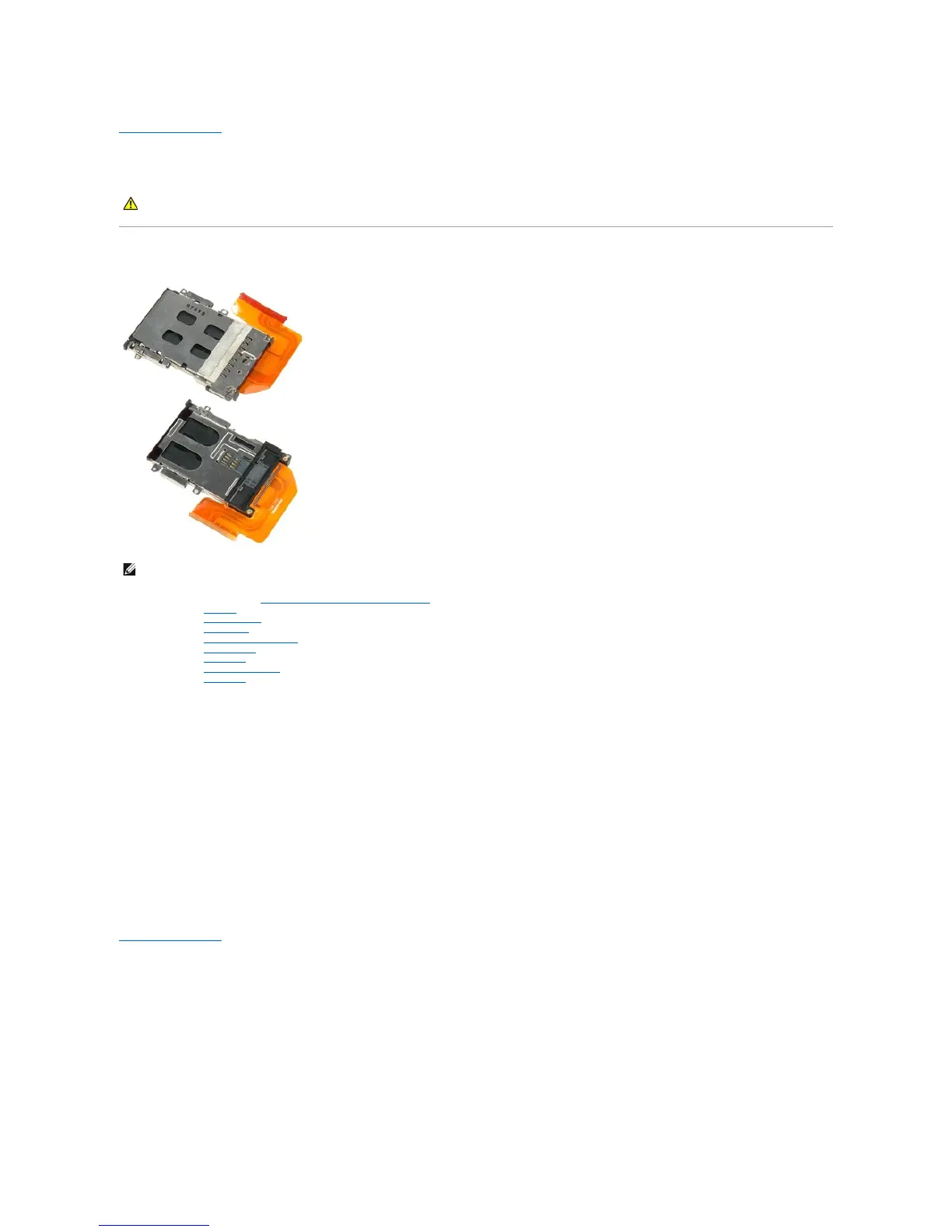

PCMCIA Card Cage
DellPrecision™WorkstationM6500ServiceManual
Removing the PCMCIA Card Cage
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
3. Remove the access panel.
4. Remove the hard drive.
5. Remove the secondary hard drive.
6. Remove the hinge cover.
7. Remove the keyboard.
8. Remove the display assembly.
9. Remove the palm rest.
10. Release the card-cage cable tab.
11. Disconnect the card cage cable from the system board.
12. Remove the screws that secure the card cage to the computer.
13. Remove the card cage from the computer.
Replacing the PCMCIA Card Cage
To replace the PCMCIA card cage, perform the above steps in reverse order.
