4–Switch Independent Partitioning
Switch Independent Partitioning Setup and Management Options
147 CU0354602-00 L

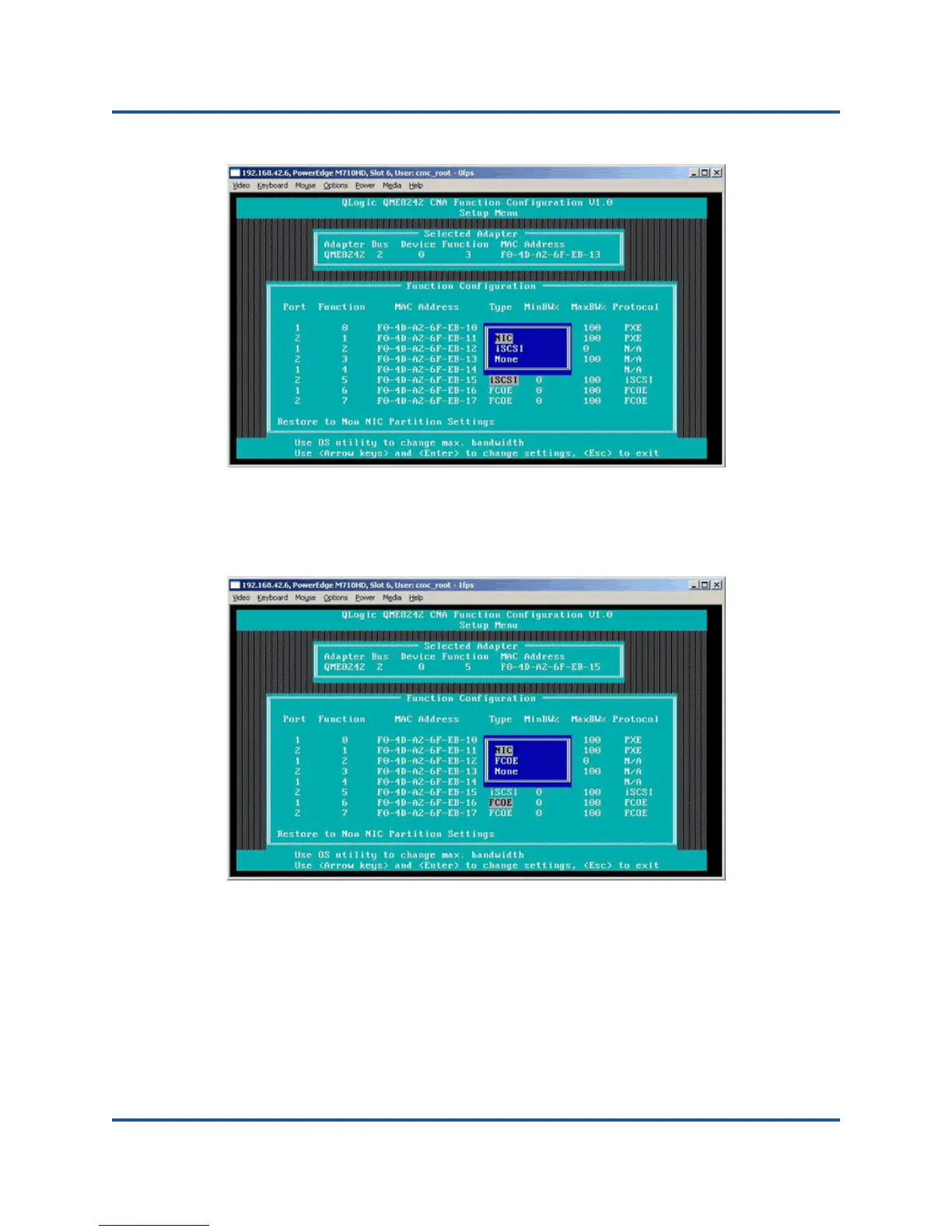

Figure 4-12. Selecting FCOE Function Type to Change
4. Move your cursor to the MinBW% column to adjust the minimum bandwidth
(see Figure 4-13) on each partition (between 0–100 percent).
Figure 4-13. Adjusting the Minimum Bandwidth
