5–Boot Configuration
iSCSI Configuration Using Fast!UTIL
209 CU0354602-00 L
4. Select Initiator IP Settings.
The Initiator IP Settings window opens, as shown in Figure 5-24.

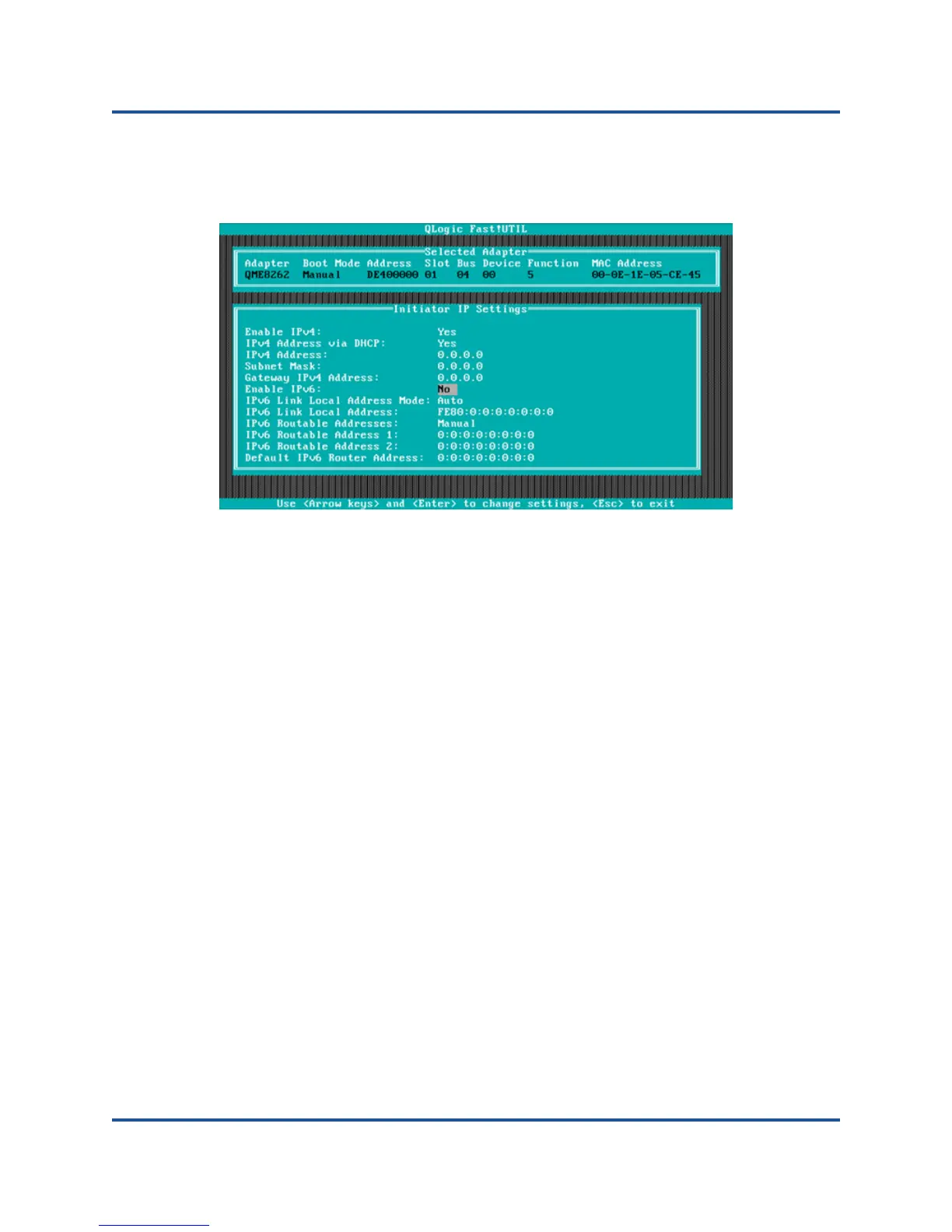

Figure 5-24. Fast!UTIL: Initiator IP Settings Window
5. Specify the IP version(s) by setting Enable IPv4 and Enable IPv6 as needed
(you can enable IPv4 only, IPv6 only, or both), and then specify additional
information as needed for the selected IP version(s):
For IPv4: Initiator IP address, subnet, and gateway
For IPv6: Initiator link local and routable addresses and default router
address
When you are finished updating the settings, return to the Host Adapter
Settings window (see Figure 5-23).
6. (Optional) On the Host Adapter Settings window, specify the Initiator iSCSI
Name.
This option is not dependent upon DHCP.
