5–Boot Configuration
iSCSI Configuration Using Fast!UTIL
210 CU0354602-00 L
7. Return to the Configuration Settings menu and then select iSCSI Boot
Settings to configure the target settings shown in Figure 5-25.

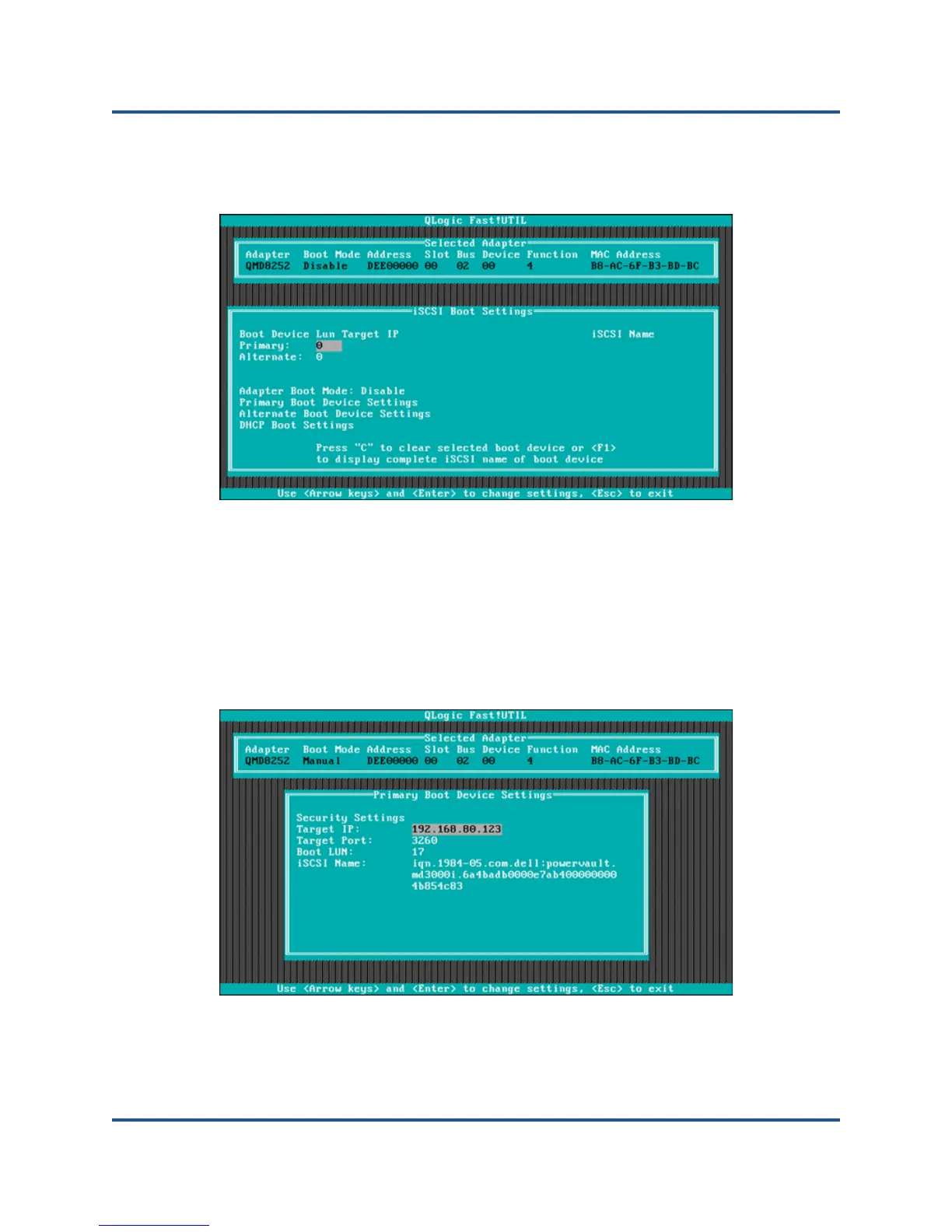

Figure 5-25. Fast!UTIL: iSCSI Boot Settings Window
a. On the iSCSI Boot Settings window, select Adapter Boot Mode and
set it to Manual.
b. On the iSCSI Boot Settings window, select Primary Boot Device
Settings.
8. On the Primary Boot Device Settings window (see Figure 5-26), specify the
target parameters.
Figure 5-26. Fast!UTIL: Primary Boot Device Settings Window
