5–Boot Configuration
iSCSI Configuration Using Fast!UTIL
211 CU0354602-00 L
a. To scan for the specified target, highlight the primary LUN Target IP
and then press ENTER.
b. Select the target from the list of discovered targets on the Select iSCSI
Device window, as shown in Figure 5-27.

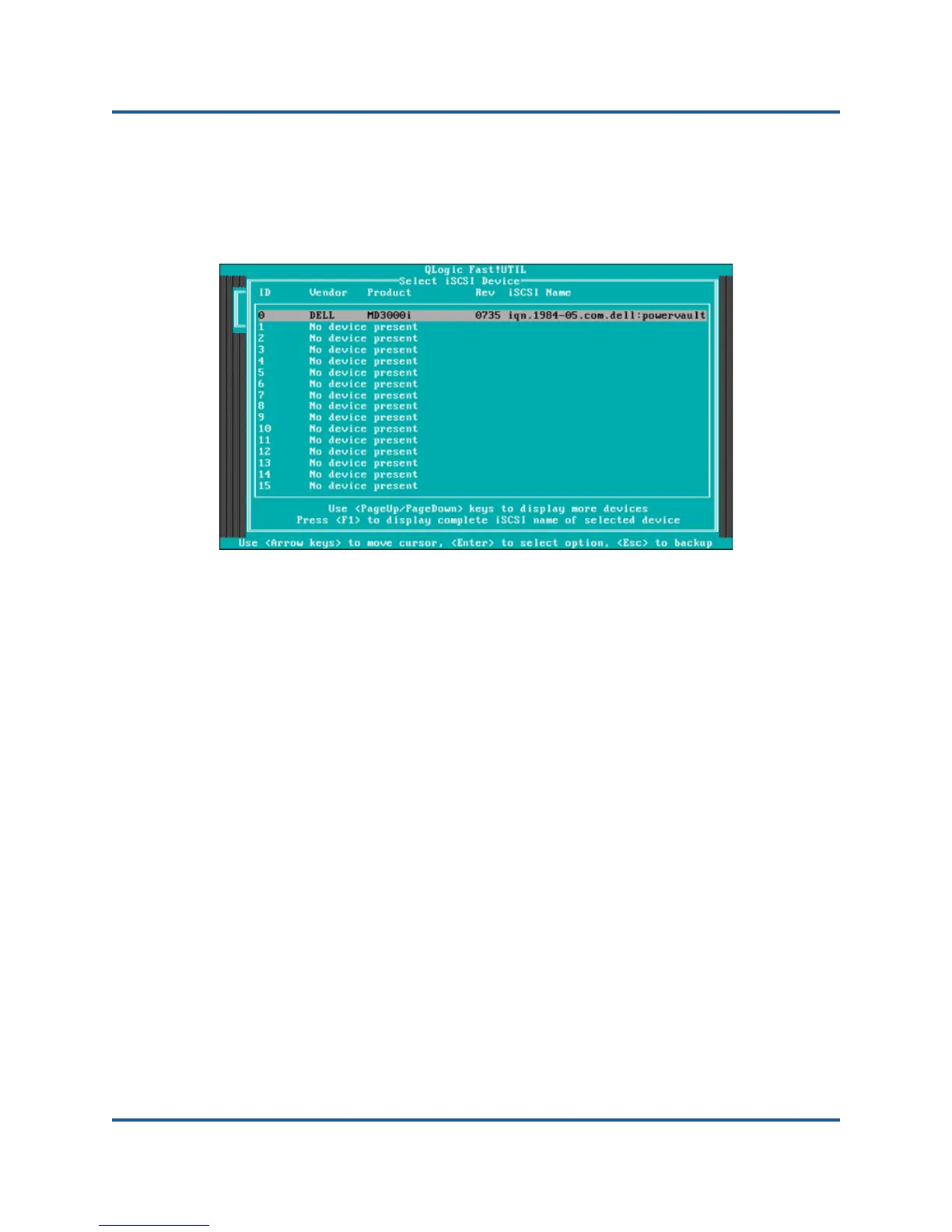

Figure 5-27. Fast!UTIL: Select iSCSI Device Window
c. On the Select LUN window, select the LUN to set the target as the
primary iSCSI boot device.
9. Press ESC and then select Save changes.
10. Press ESC again and then select Reboot System.
After rebooting, the iSCSI BIOS loads for the target configured previously in
the QLogic iSCSI Fast!UTIL BIOS utility.
