R

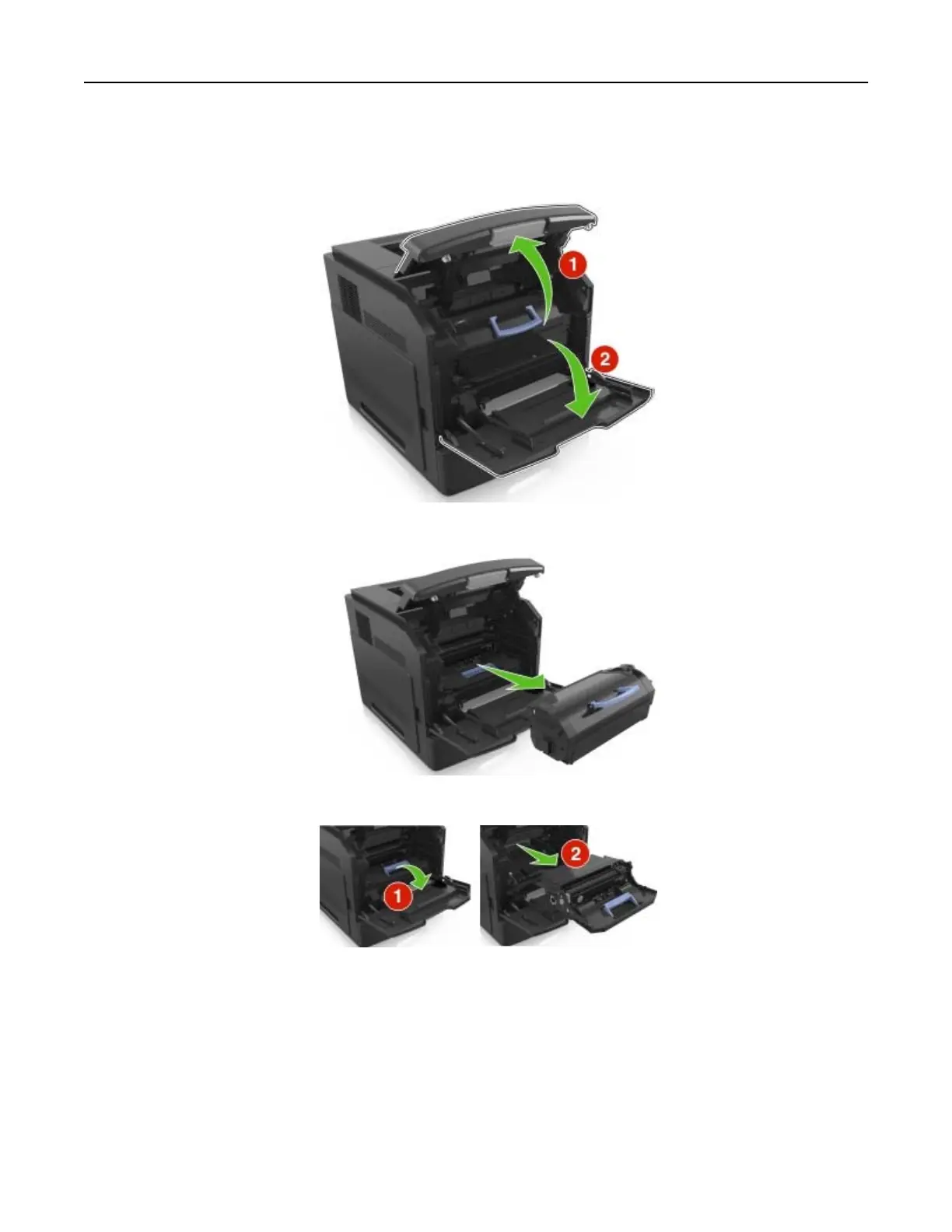

eplacing the imaging unit
1
Lift the front cover
, and then pull
down the multipurpose feeder door
.
2
Pull out the toner cartridge from
the printer using the handle
.
3
Lift the blue handle, and then pull
out the imaging unit from the printer
.
Maintaining the printer
144
143
145
