Installing an Internal Solutions Port
The controller board supports one optional Internal Solutions Port (ISP).
Note: This task requires a
flat
‑head screwdriver.
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware
or memory devices sometime after setting up the printer, then turn the printer
o,
and unplug the power
cord from the electrical outlet before continuing. If you have any other devices attached to the printer,
then turn them o as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static
electricity. Touch something metal on the printer first before touching any controller board electronic
components or connectors.
1 Access the controller board.
For more information, see
“Accessing the controller board” on page 21.
2 If an optional printer hard disk is installed, then remove the printer hard disk
first.
For more information, see
“Removing a printer hard disk” on page 35.

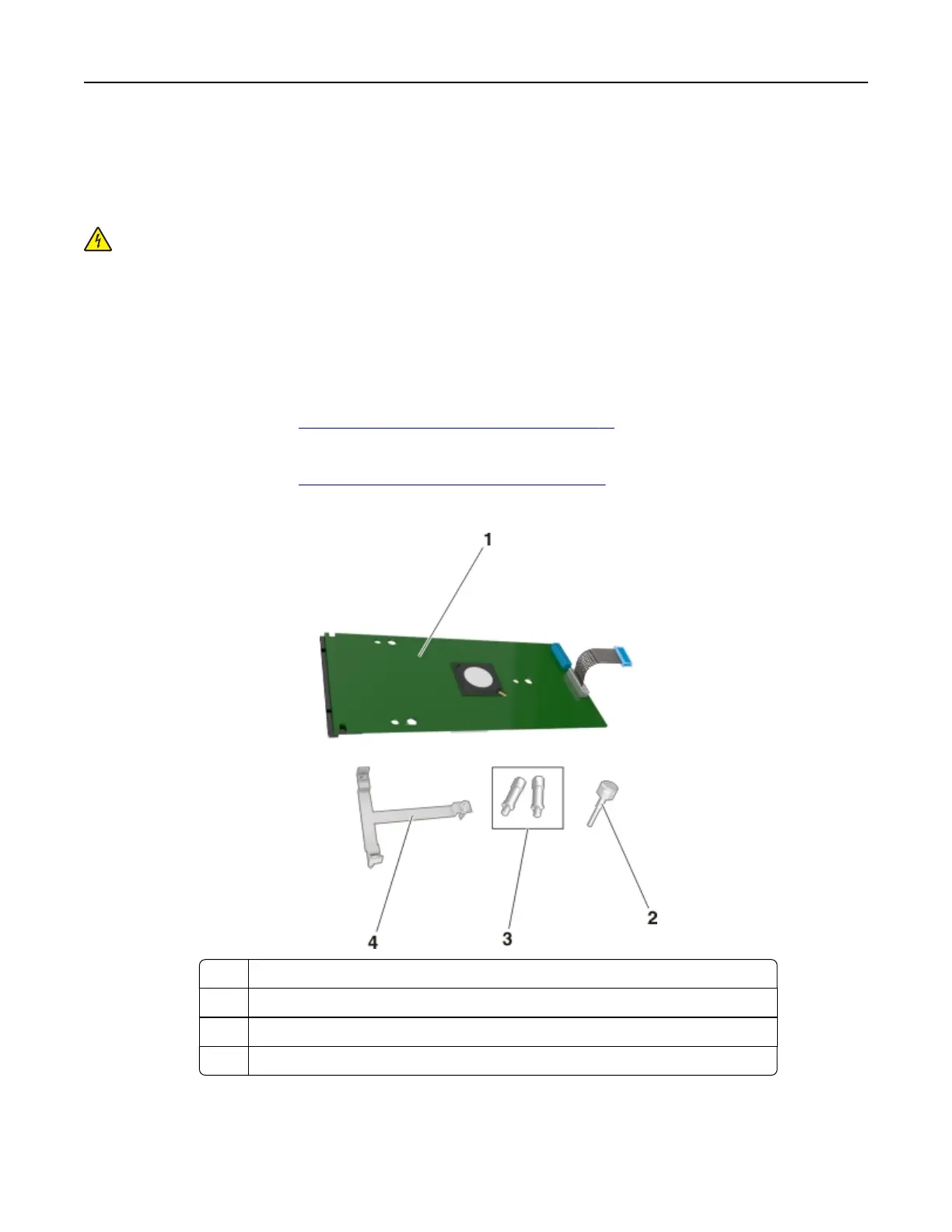

3 Unpack the ISP kit.
1 ISP solution
2 Screw for attaching the plastic bracket to the ISP
3 Screws for attaching the ISP mounting bracket to the controller board shield
4 Plastic bracket
Additional printer setup 26
