3
R

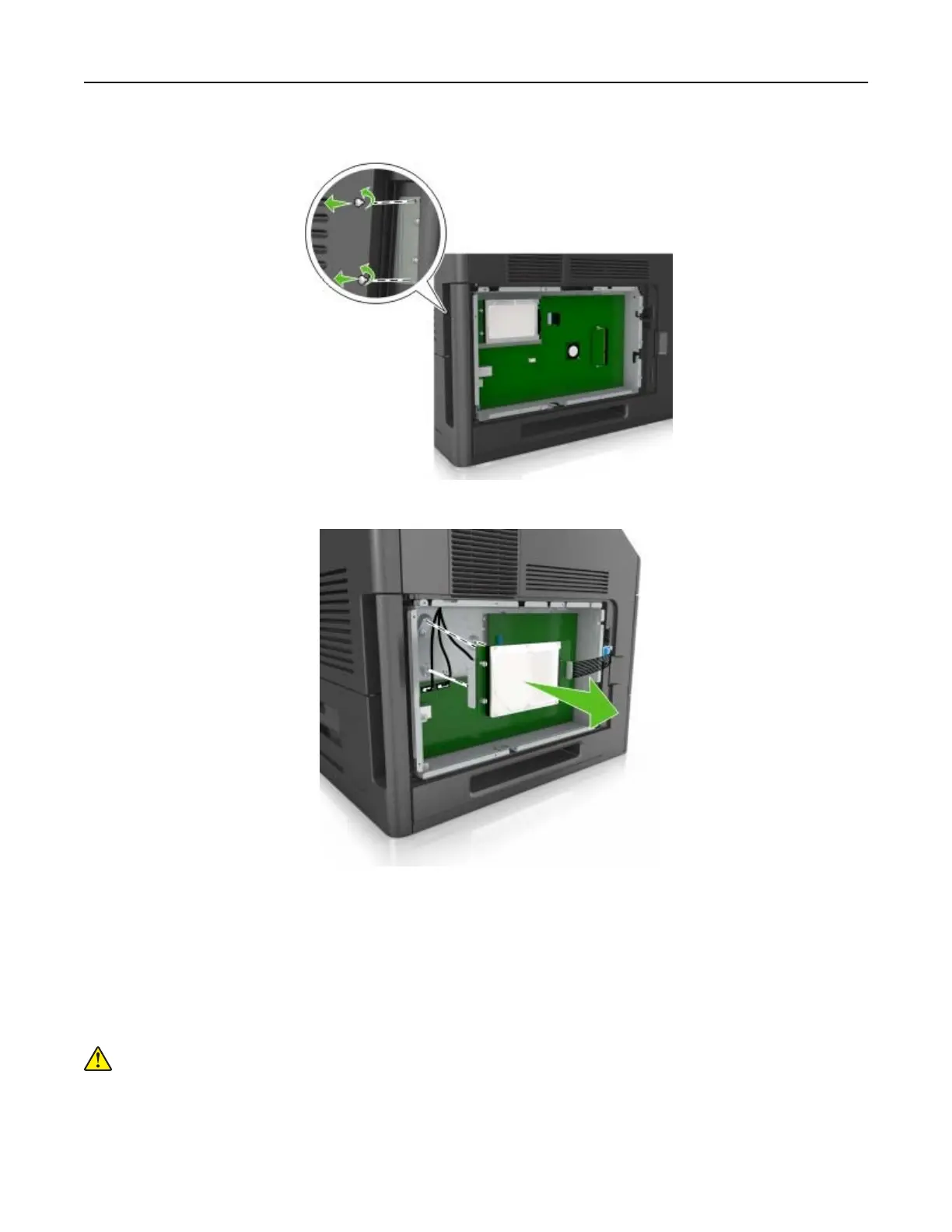

emove the screws holding the
printer hard disk in place.
4
Re
mo
v
e
th
e
pr
i
n
ter hard disk.
5
Set aside the printer hard disk.
Installing hardware options
Order of installation
CAUTION—PO
TENTIAL INJURY
:
The printer weight is greater than
18 kg (40 lb) and requires two or
more trained personnel to lift it safely
.
Additional printer setup
37
36
38
