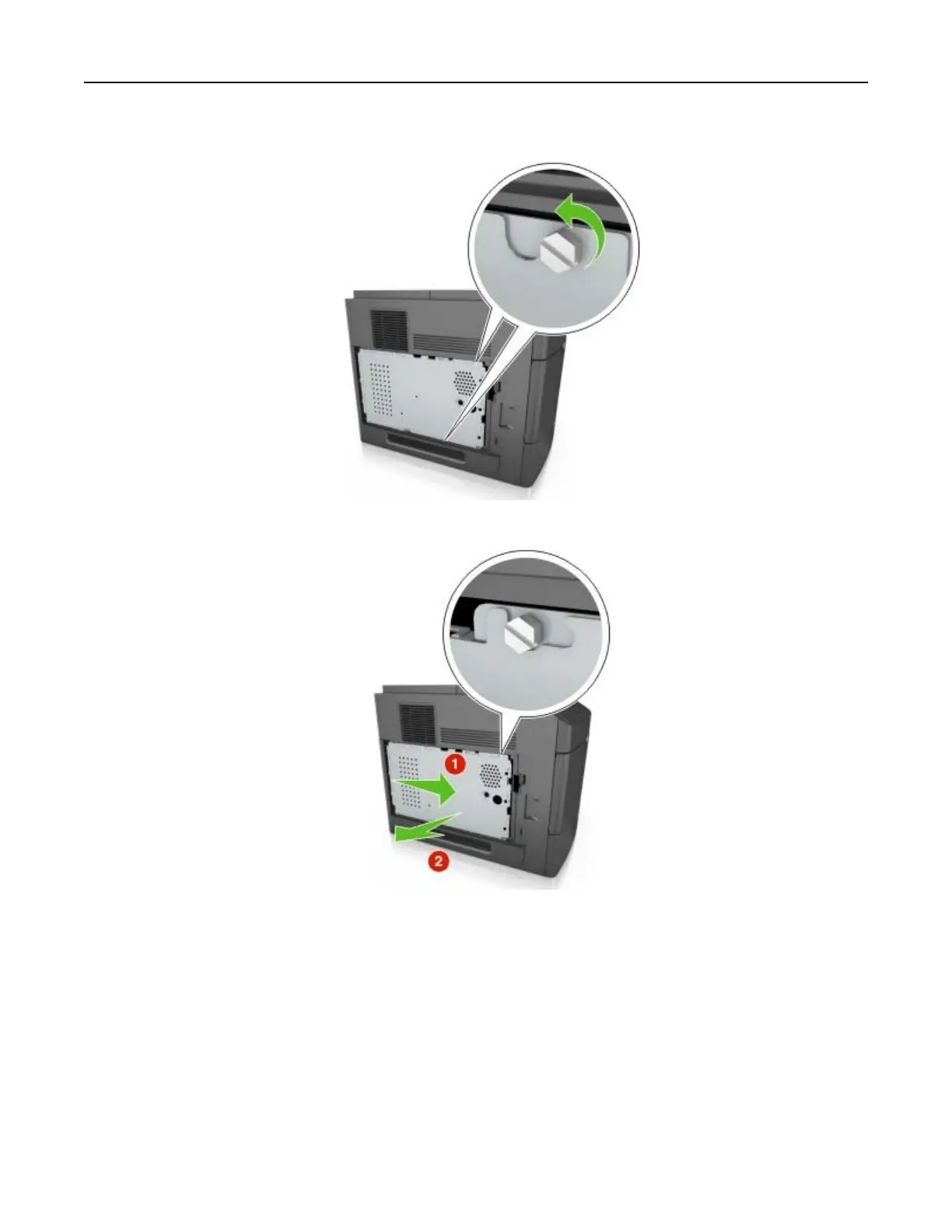

2 Using a screwdriver, loosen the screws on the controller board shield.
3 Remove the shield.
4 Use the following illustration to locate the appropriate connector:
Warning—Potential Damage: Controller board electronic components are easily damaged by static
electricity. Touch a metal surface on the printer first before touching any controller board electronic
component or connector.
Additional printer setup 22
