Dell S5830DN - Page 61

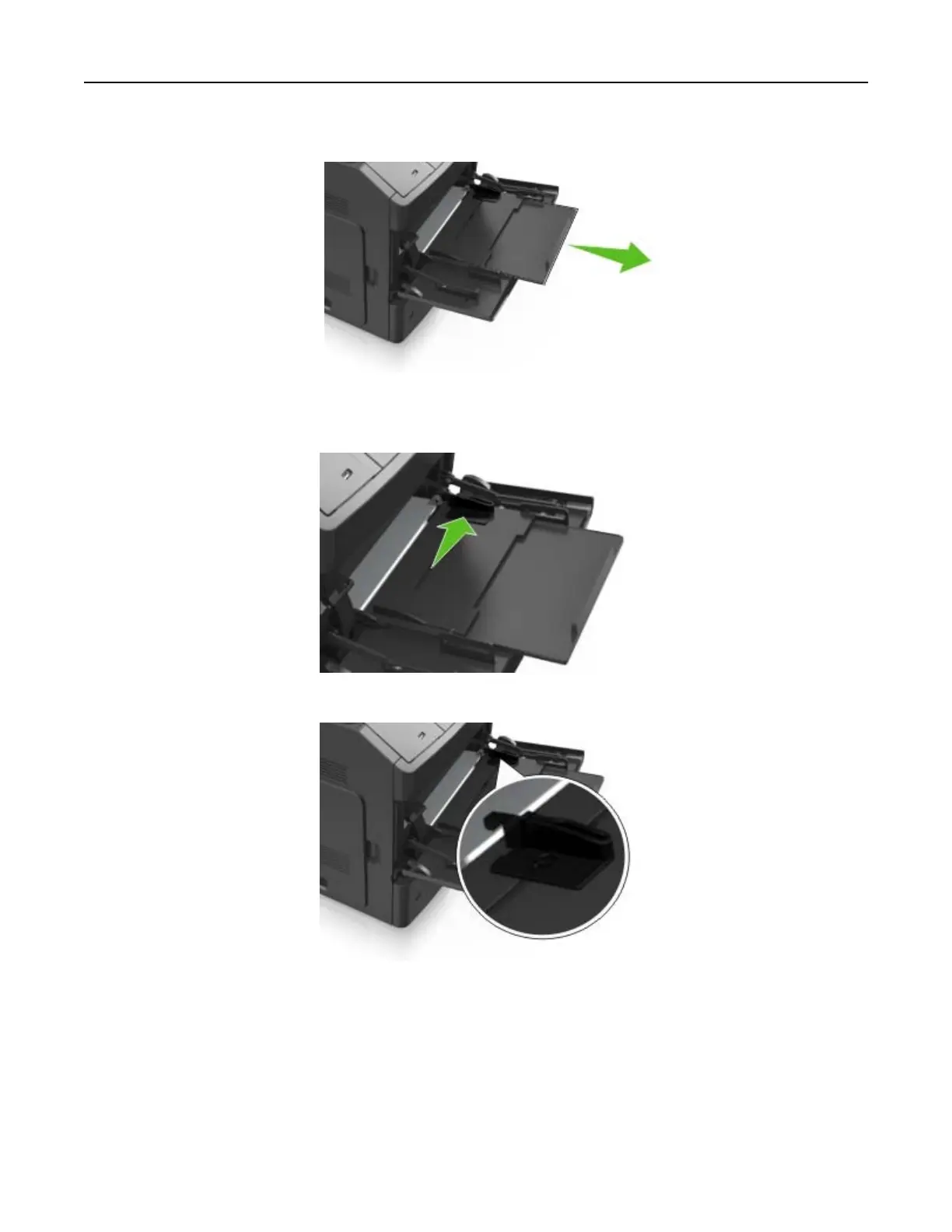

2 Pull the multipurpose feeder extender.
Note: Guide the extender gently so that the multipurpose feeder is fully extended and open.
3 Slide the width guide to the correct position for the size of the paper being loaded.
Note: Use the paper size indicators on the bottom of tray to help position the guides.
Loading paper and specialty media 61
