Steps

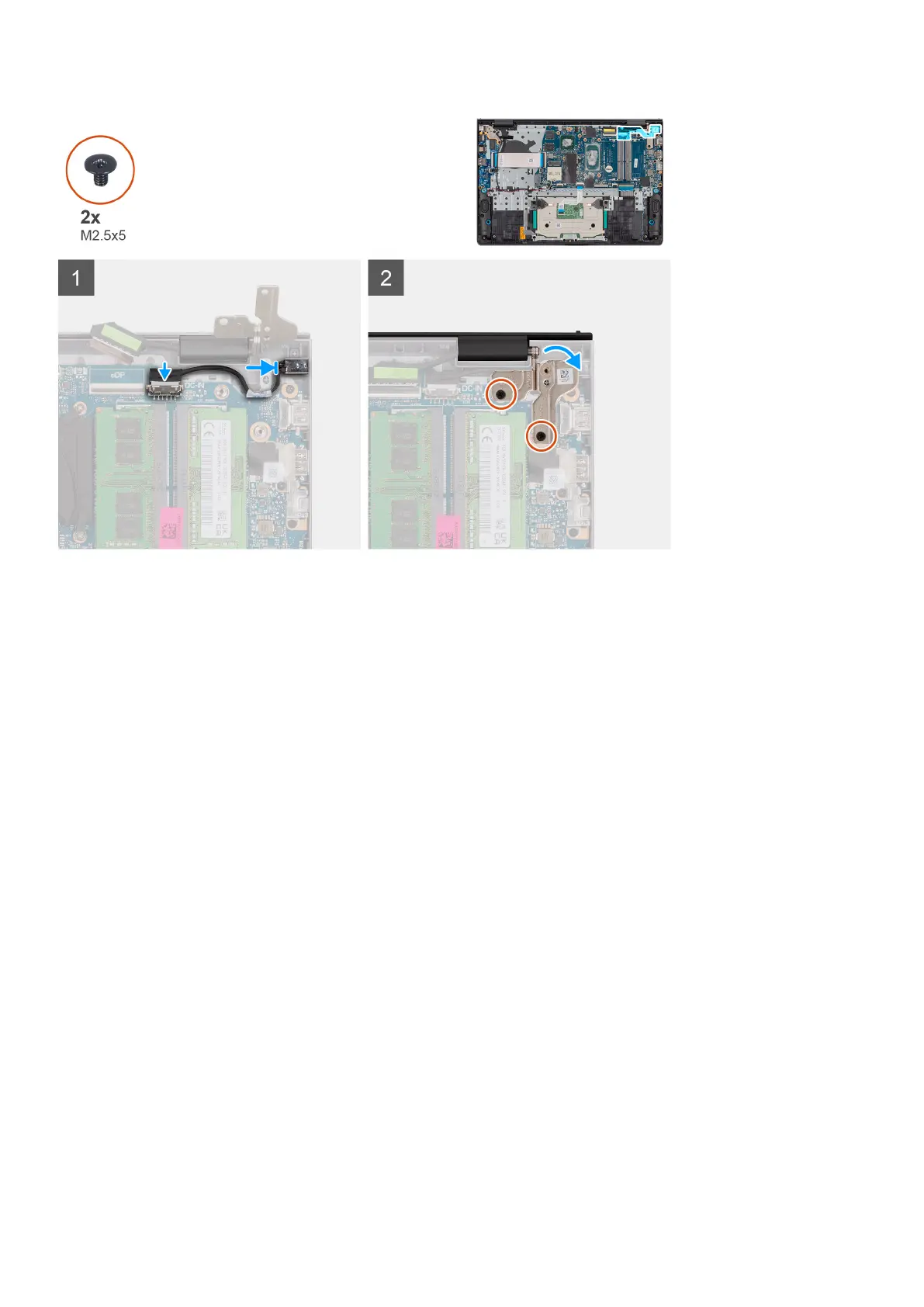

1. Using the alignment post, place the power-adapter port into its slot on the palm-rest and keyboard assembly.
2. Connect the power-adapter port cable to the connector on the system board.
3. Fold the right hinge down and install the two (M2.5x5) screws to secure it to the palm-rest and keyboard assembly.
Next steps
1. Install the display assembly.
2. Install the wireless card.
3. Install the SSD - M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following images indicate the location of the speakers and provide a visual representation of the removal procedure.
32
Removing and installing components
