I/O daughter board FFC
Removing the Input/Output daughterboard FFC
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the fan.
About this task

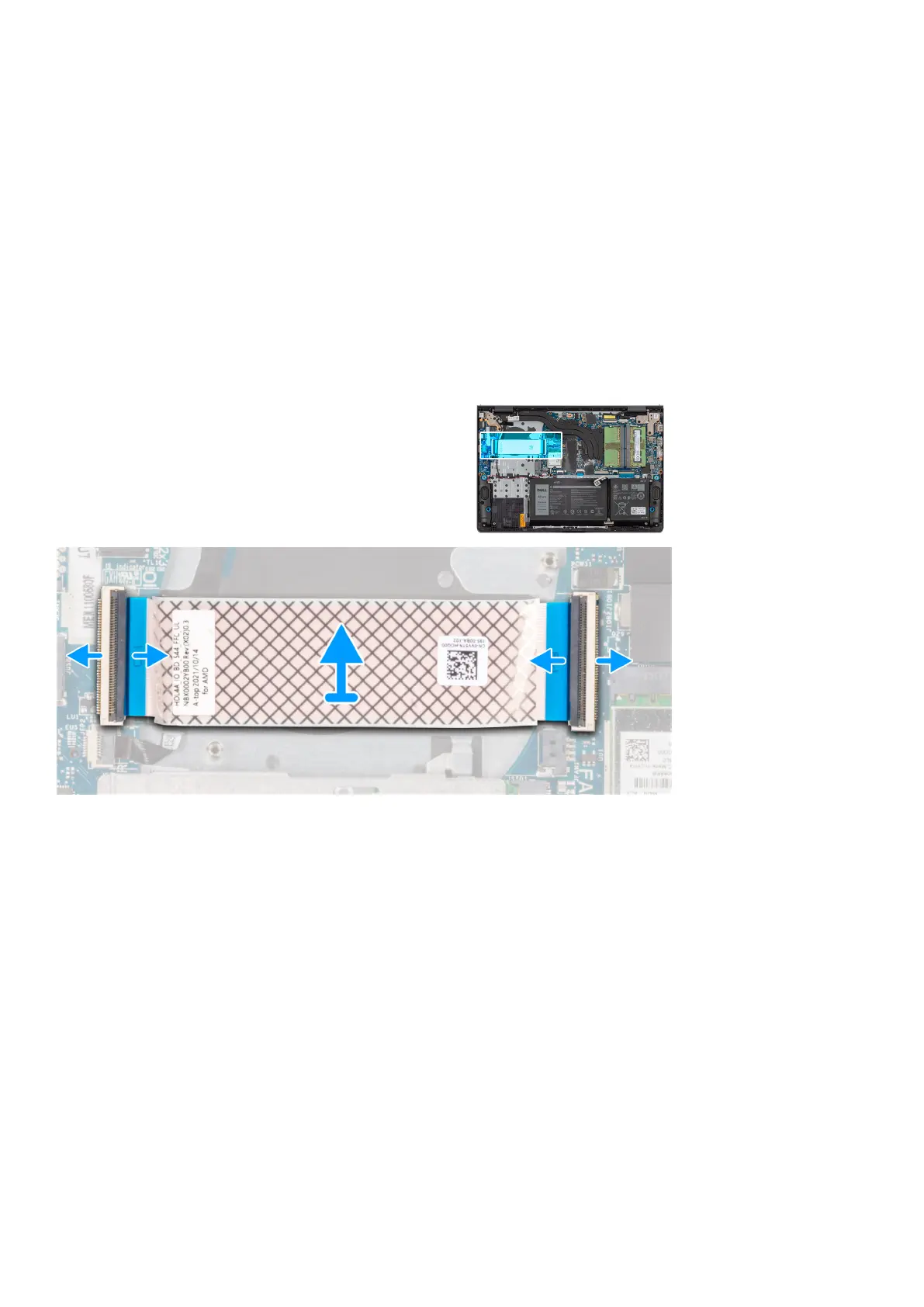

The following image indicates the location of the Input/Output daughter board FFC and provides a visual representation of the
removal procedure.
Steps
1. Open the latch and disconnect the I/O daughter board cable from the I/O board.
2. Open the latch and disconnect the I/O daughter board cable from the system board.
3. Lift the I/O daughter board cable off the palm-rest and keyboard assembly.
Installing the Input/Output daughter board FFC
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the I/O daughter board FFC and provide a visual representation of the installation
procedure.
