Steps
1. Remove the three (M2.5x3.8) screws from the left display hinge.
2. Lift and remove the left display hinge from the display assembly.
3. Remove the three (M2.5x3.8) screws from the right display hinge.
4. Lift and remove the right display hinge from the display assembly.
Installing the display hinges
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE: This procedure applies for models shipped with plastic chassis.
About this task

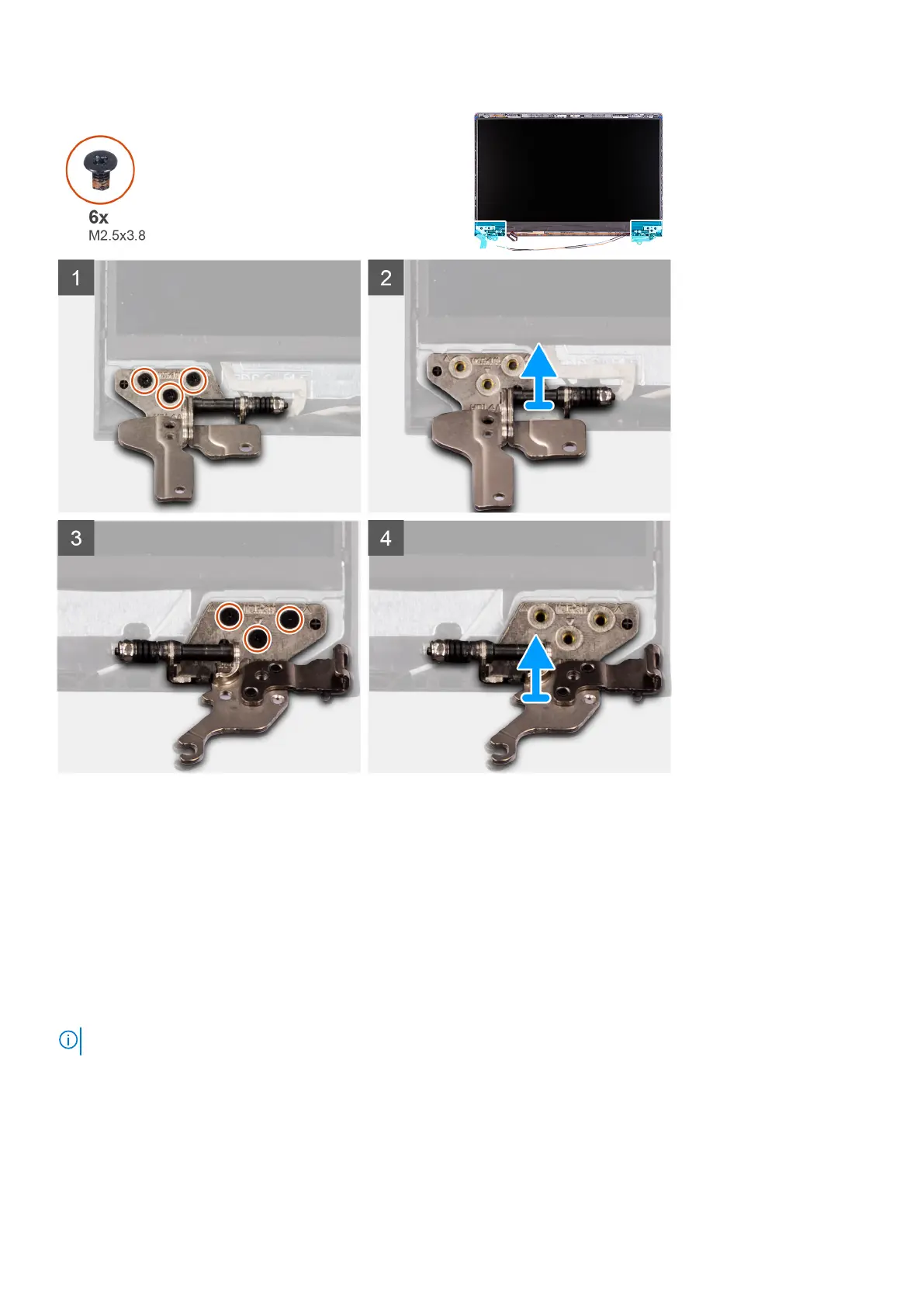

The following images indicate the location of the display hinges and provide a visual representation of the installation procedure.
