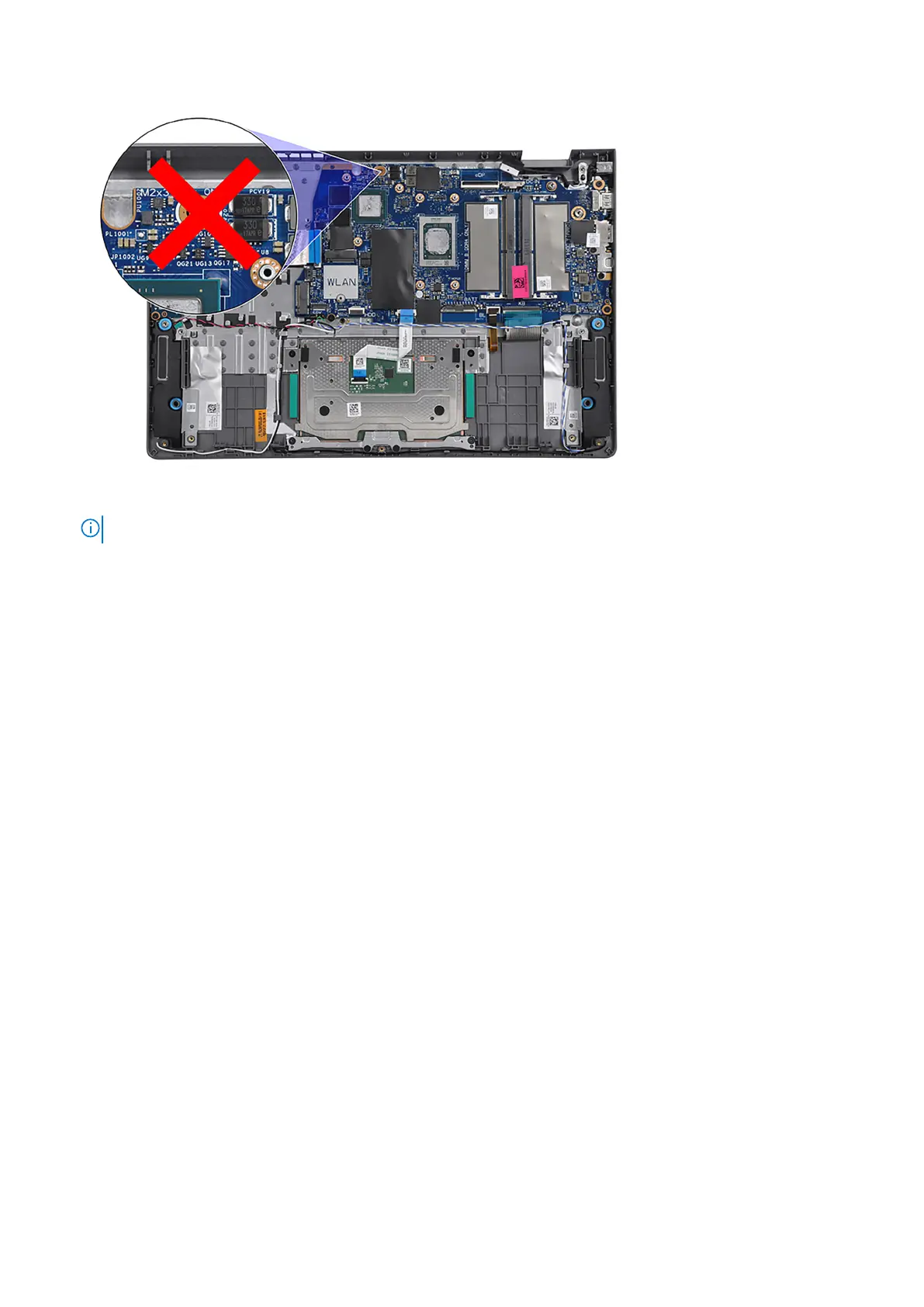

4. Connect the cables to the system board:
NOTE: See Discrete system board connectors for location of connectors.
5. Close the right and align the screw holes on the right hinge with the screw holes on the system board.
6. Replace the two (M2.5x5) screws to secure it to the palm-rest.
Next steps
1. Install the display assembly.
2. Install the heat sink - UMA or discrete, whichever applicable.
3. Install the fan.
4. Install the wireless card.
5. Install the SSD - M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
6. Install the memory modules.
7. Install the battery.
8. Install the base cover.
9. Follow the procedure in After working inside your computer.
Power button with fingerprint reader
Removing the power button with optional fingerprint reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
4. Remove the wireless card.
5. Remove the display assembly.
6. Remove the I/O board.
About this task
The following image indicates the location of the power button with optional fingerprint reader and provides a visual
representation of the removal procedure.
74
Removing and installing components
