Steps
1. Align the rib inside the left hinge cap to the outer sides.
2. Push the left hinge cap down until it clicks in place.
3. Align the rib inside the right hinge cap to the outer sides.
4. Push the right hinge cap down until it clicks in place.
Next steps
1. Install the display assembly.
2. Install the wireless card.
3. Install the SSD - M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
Camera
Removing the camera module
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
4. Remove the wireless card.
5. Remove the display assembly.
6. Remove the hinge caps.
7. Remove the display bezel.
8. Remove the display hinges.
9. Remove the display panel.
NOTE: This procedure applies for systems shipped with plastic chassis.
About this task

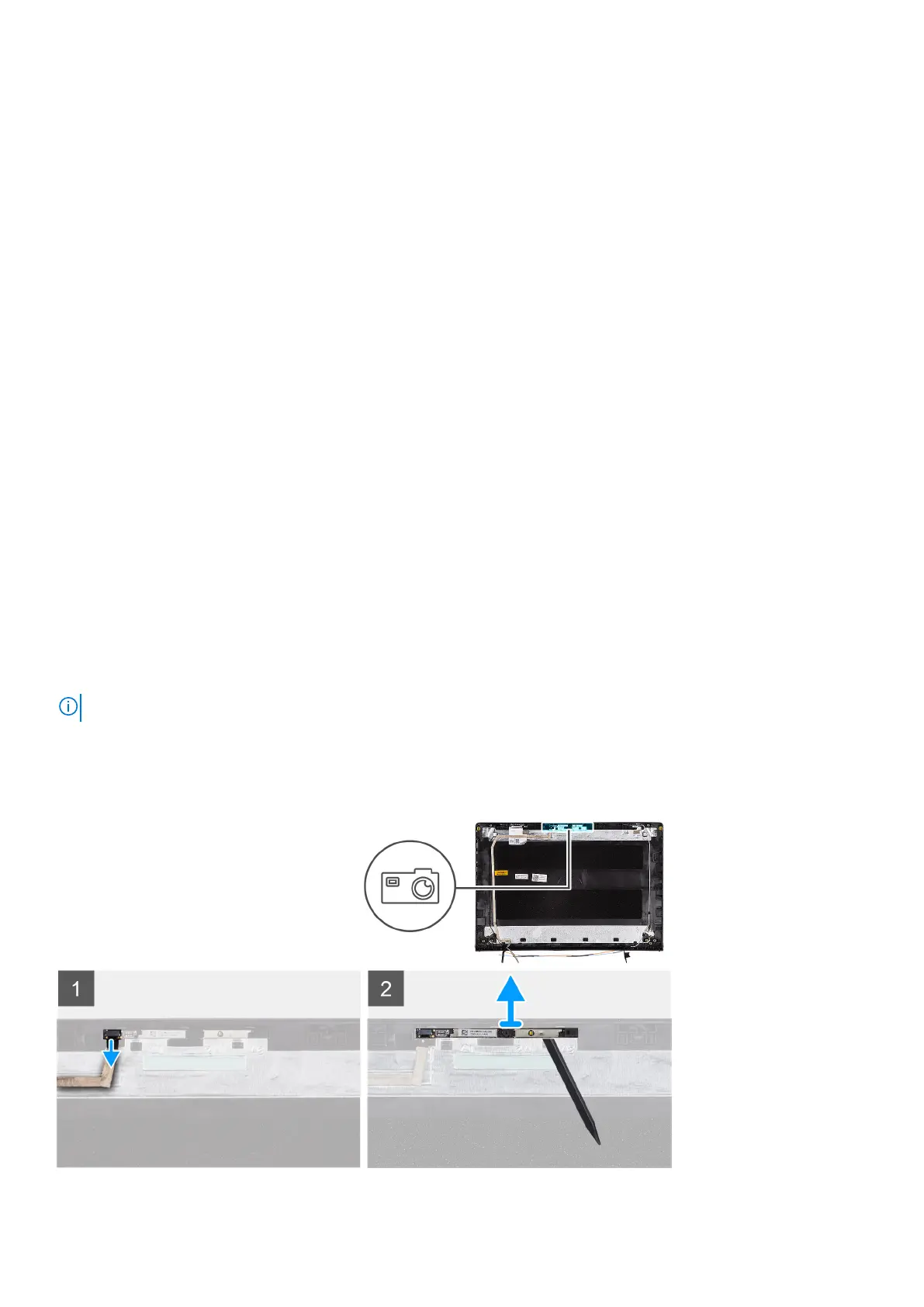

The following images indicate the location of the camera module (in a system shipped with plastic chassis) and provide a visual
representation of the removal procedure.
