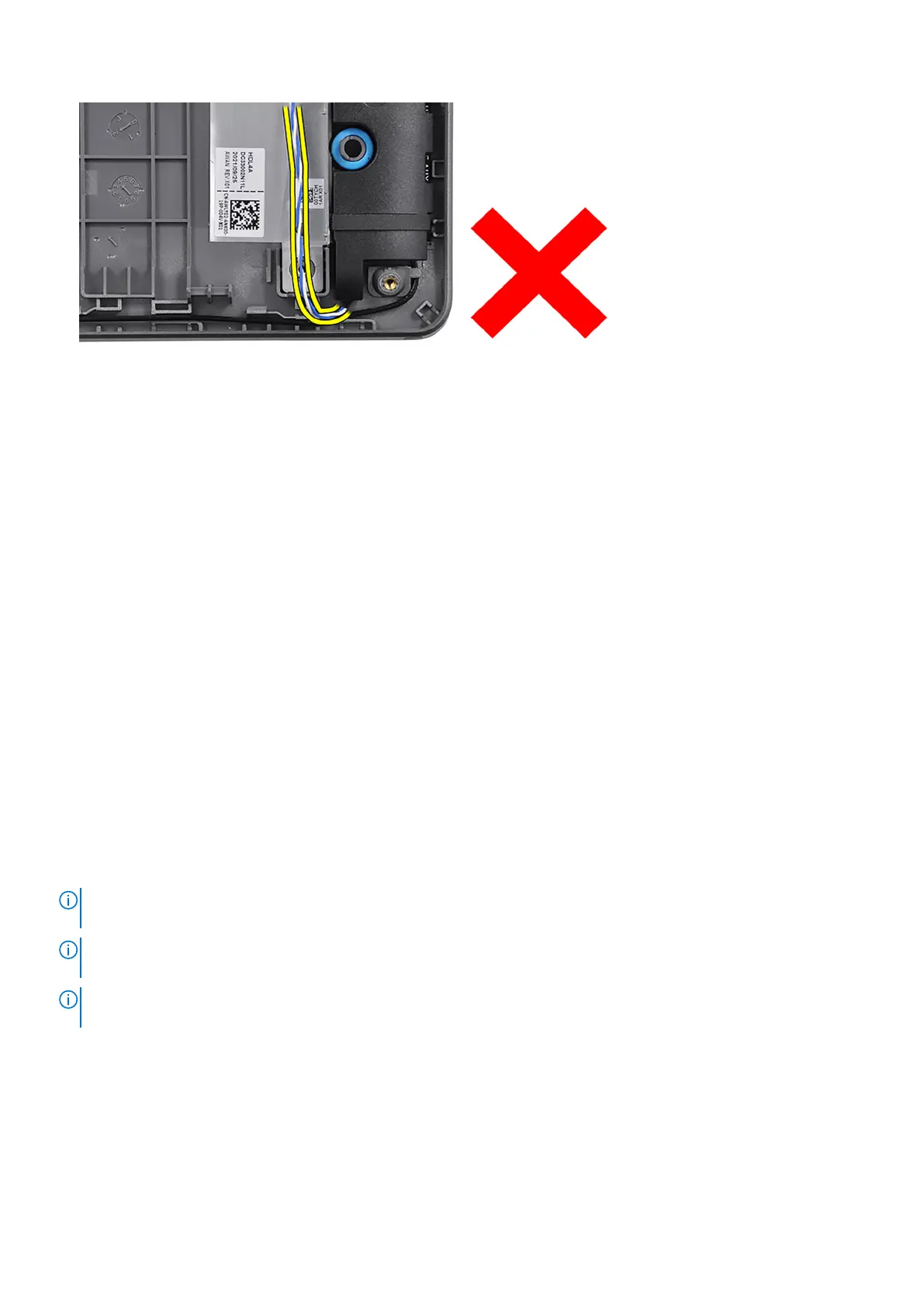

3. Connect the speaker cable to the system board.
4. Adhere the adhesive tape to secure the speaker cable.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Heat sink
Removing the UMA heat sink
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE:
The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to cool before you
touch it.
NOTE: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils in your skin
can reduce the heat transfer capability of the thermal grease.
NOTE: For systems shipped with plastic chassis, peel the adhesive tape that secures the WLAN antenna cable on the fan
and heat sink.
The following images indicate the location of the heat sink and provide a visual representation of the removal procedure.
Removing and installing components
35
