Steps

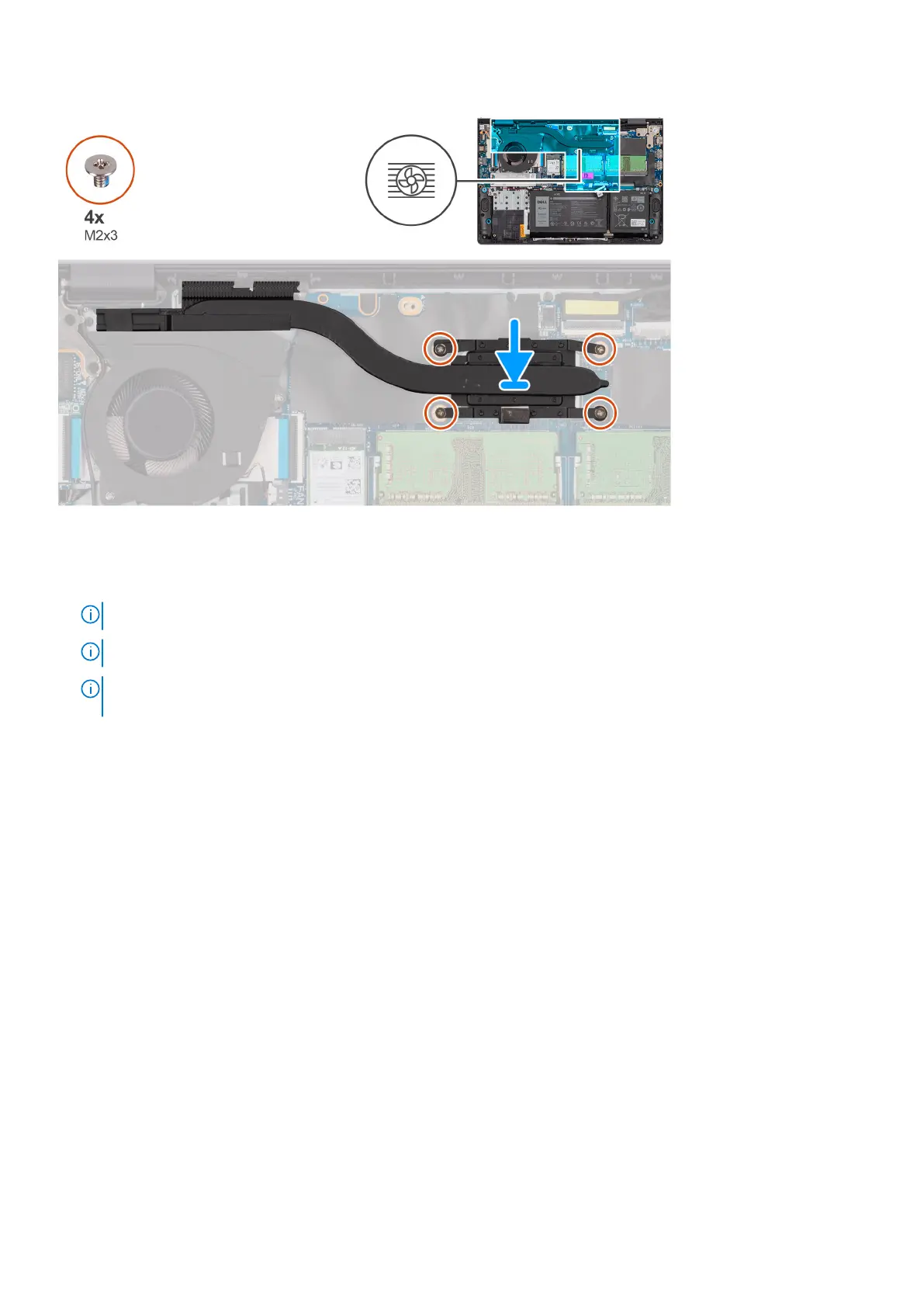

1. Place the heat sink on the system board.
2. Tighten the four (M2x3) captive screws that secure the heat sink to the system board.
NOTE: Tighten the captive screws in the sequential order mentioned on the heat sink [1 > 2 > 3 > 4].
NOTE: The number of screws varies depending on the configuration ordered.
NOTE: For systems shipped with plastic chassis, adhere the adhesive tape to secure the WLAN antenna cables on the
fan and heat sink.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the discrete heat sink
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the discrete heat sink and provide a visual representation of the removal
procedure.
Removing and installing components
37
