Steps

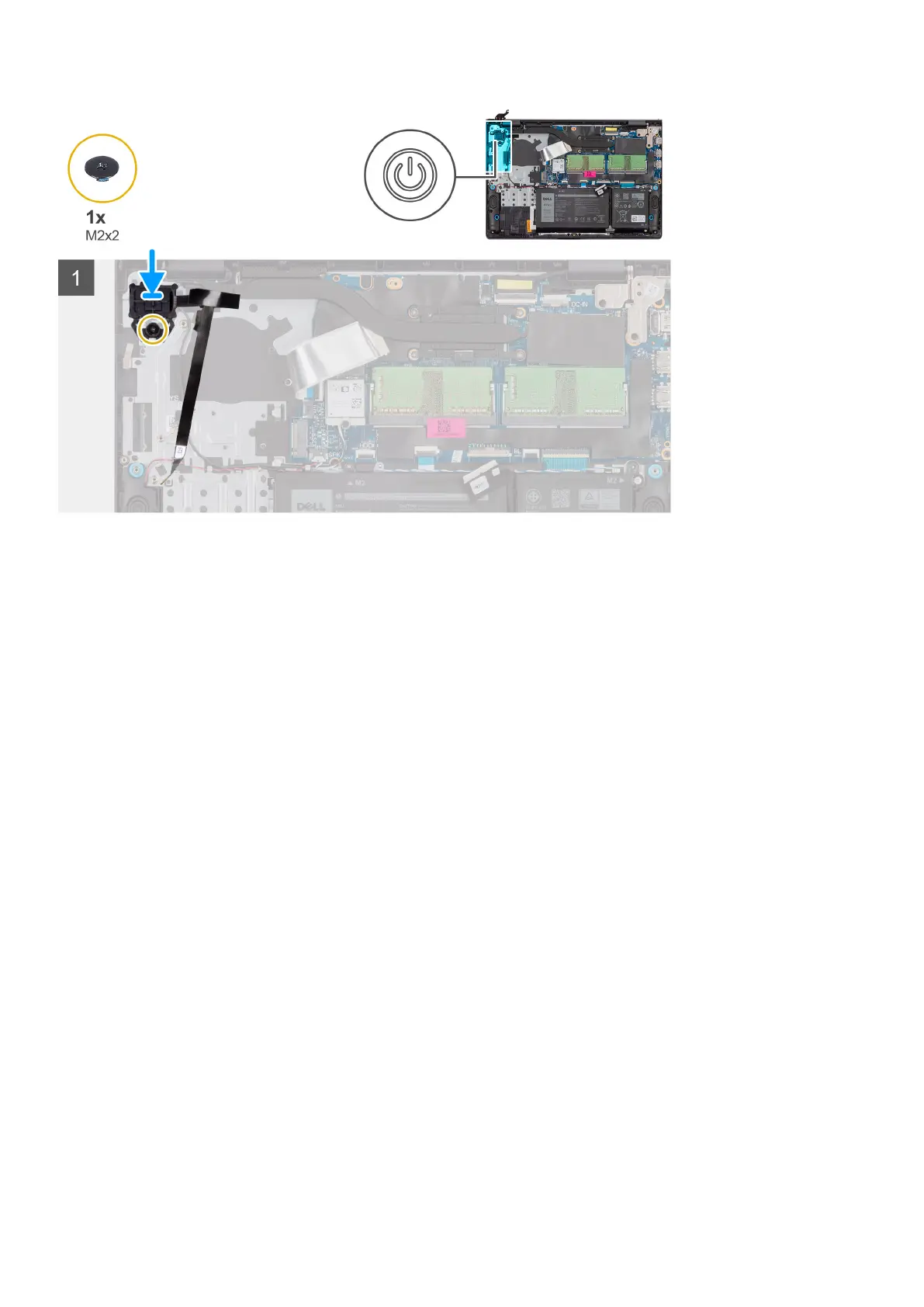

1. Using the alignment posts, place the power button with optional fingerprint reader into its slot on the palm-rest and
keyboard assembly.
2. Replace the (M2x2) screw that secures the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
Next steps
1. Install the display assembly.
2. Install the I/O board.
3. Install the wireless card.
4. Install the SSD - M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the memory modules.
5. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
6. Remove the wireless card.
7. Remove the fan.
8. Remove the heat sink - UMA or discrete, whichever applicable.
9. Remove the I/O board FFC.
10. Remove the I/O board.
11. Remove the speakers.
12. Remove the touchpad.
76
