Steps

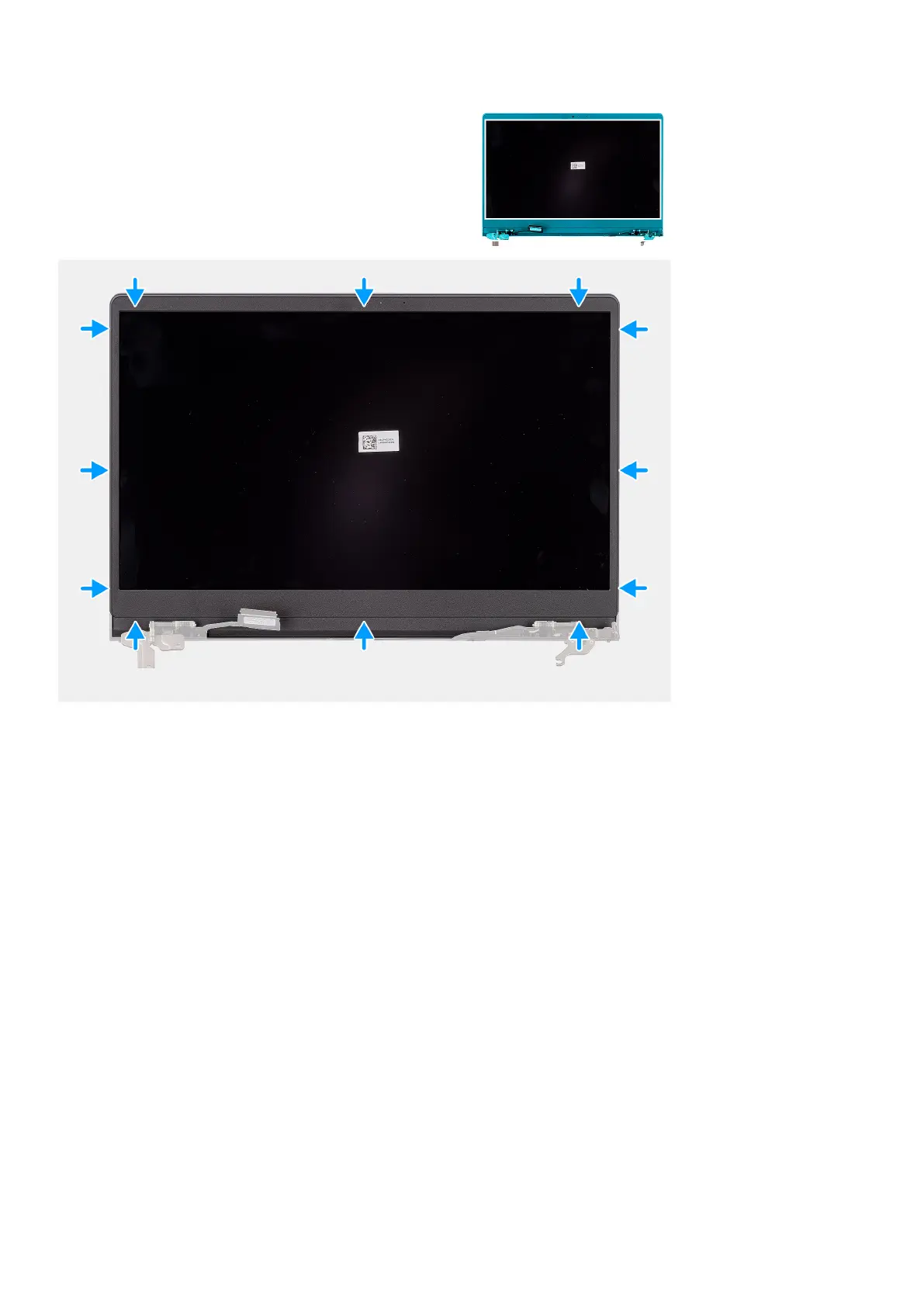

Align the display bezel with the display back-cover and antenna assembly, and then gently snap the display bezel into place.
Next steps
1. Install the hinge caps.
2. Install the display assembly.
3. Install the wireless card.
4. Install the SSD - M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
Display panel
Removing the display panel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
4. Remove the wireless card.
Removing and installing components
47
