Steps
1. Remove the (M2x2) screw that secures the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
2. Peel the fingerprint reader Flexible Flat cable from the palm-rest and keyboard assembly.
3. Lift the power button with optional fingerprint reader, along with its cable, off the palm-rest and keyboard assembly.
Installing the power button with optional fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

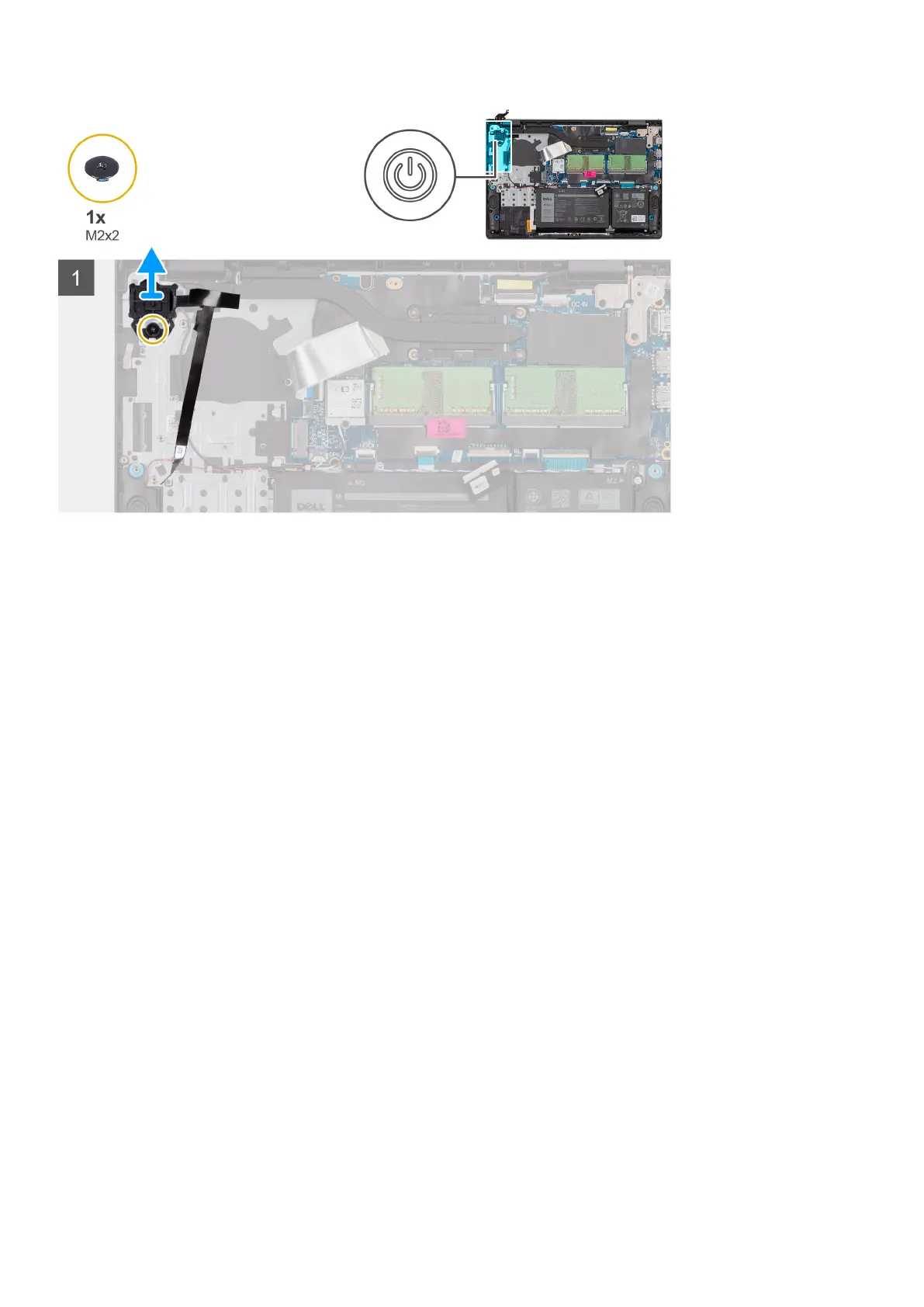

The following image indicates the location of the power button with optional fingerprint reader and provides a visual
representation of the installation procedure.
Removing and installing components
75
