Steps

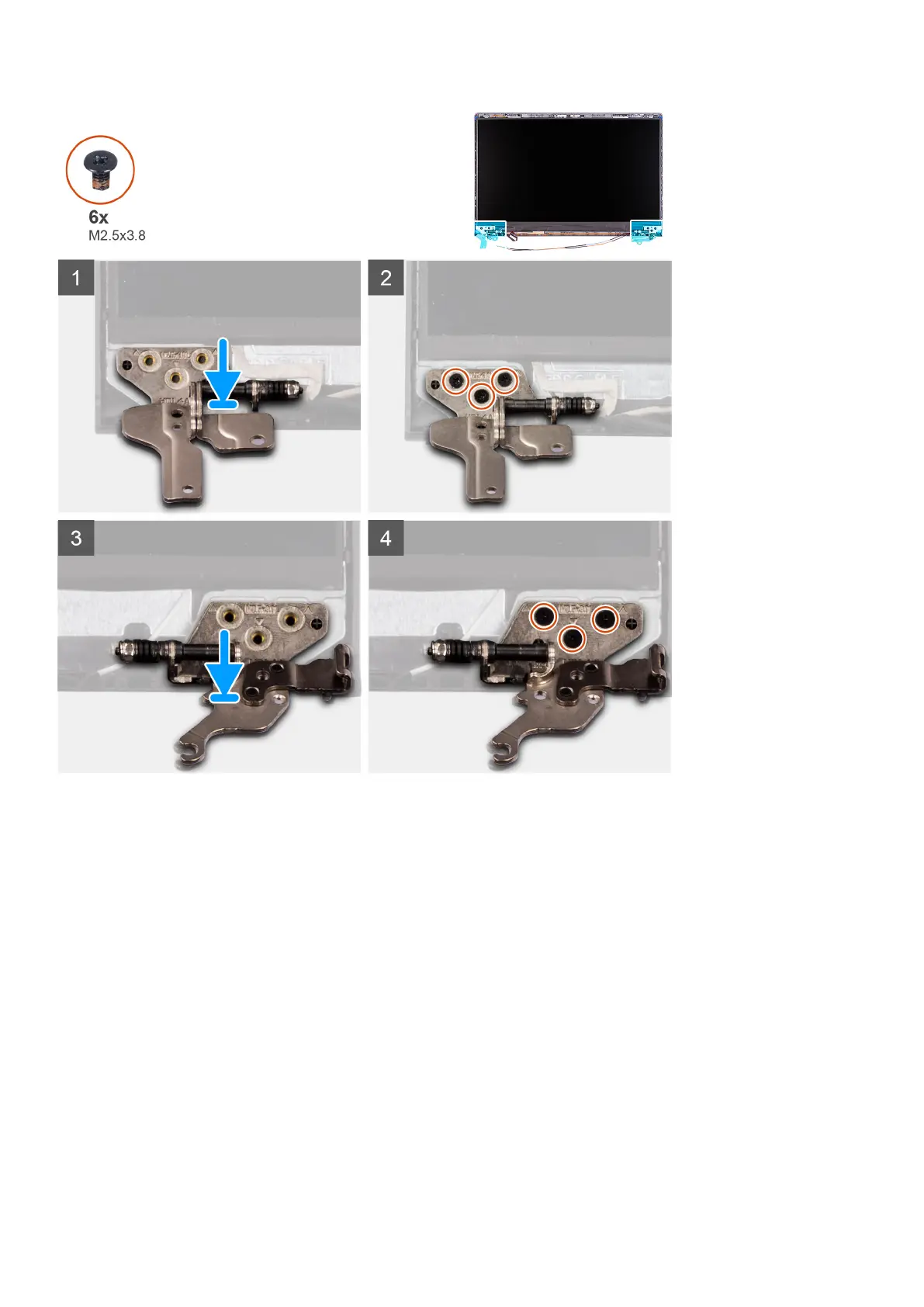

1. Align and place the left display hinge on the display assembly.
2. Install the three (M2.5x3.8) screws to secure the left display hinge to the display panel and back cover.
3. Align and place the right display hinge on the display assembly.
4. Install the three (M2.5x3.8) screws to secure the right display hinge to the display panel and back cover.
Next steps
1. Install the display bezel.
2. Install the hinge caps.
3. Install the display assembly.
4. Install the wireless card.
5. Install the SSD - M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
Removing and installing components
53
