Steps

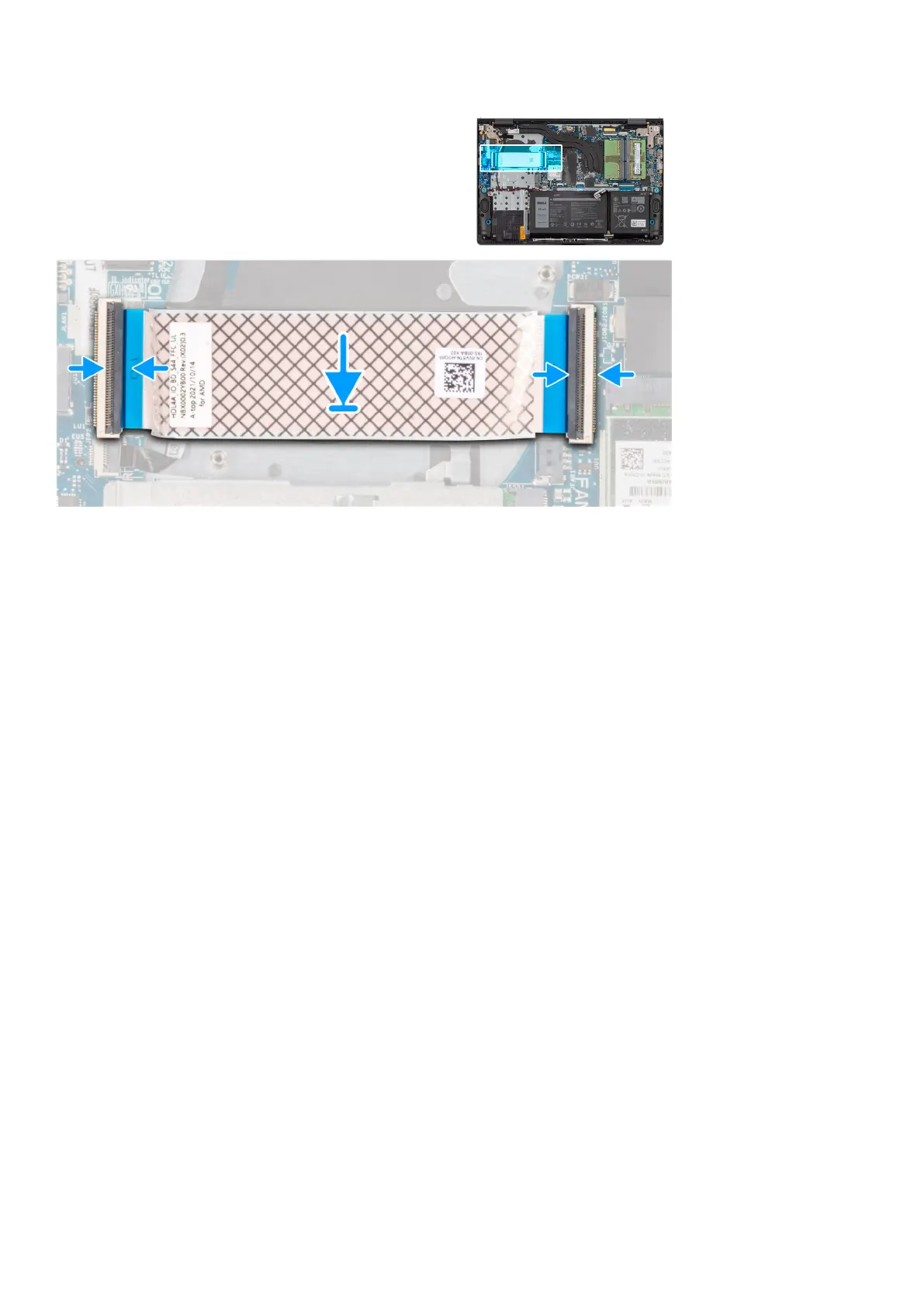

1. Place the I/O daughter board FFC on the palm-rest and keyboard assembly.
2. Connect the I/O daughter board FFC the connector on the I/O board.
3. Connect the I/O daughter board FFC the connector on the system board.
Next steps
1. Install the fan.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
64
Removing and installing components
