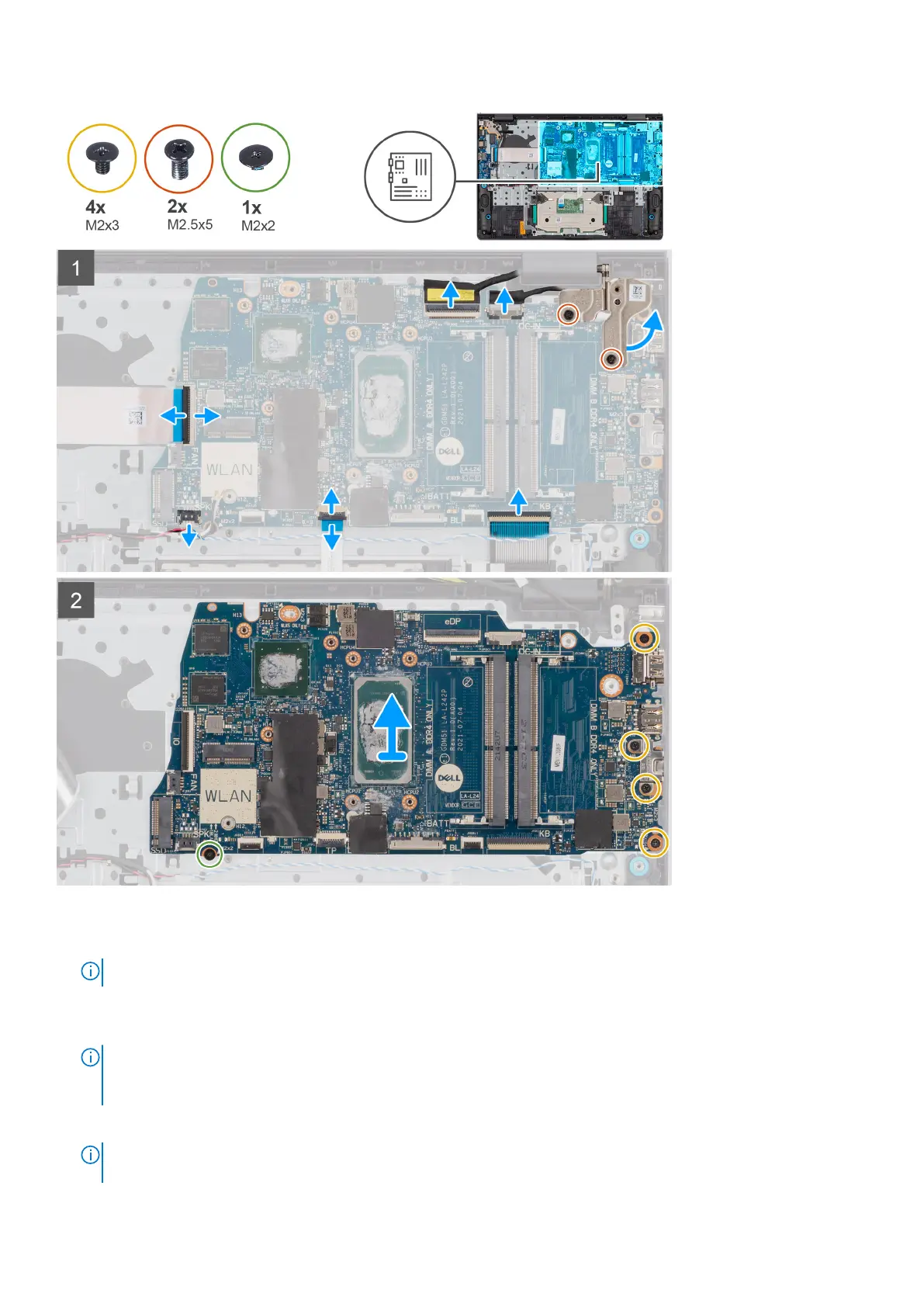

Steps
1. Disconnect the cables from the system board.
NOTE: See Discrete system board connectors for location of connectors.
2. Remove the two (M2.5x5) screws from the right hinge.
3. Remove the single (M2x2) and three (M2x3) screws that secure the system board to the palm-rest.
NOTE:
For models shipped with a USB Type-C port, a USB Type-C bracket is secured to the system board with single
(M2x3) screw. The bracket is bundled with the system board as a service part and MUST NOT be removed from the
system board.
4. Carefully lift the system board away from the chassis.
NOTE:
For systems shipped with a USB Type-C port, DO NOT remove the Type-C bracket that is secured to the
system board.
Removing and installing components 71
