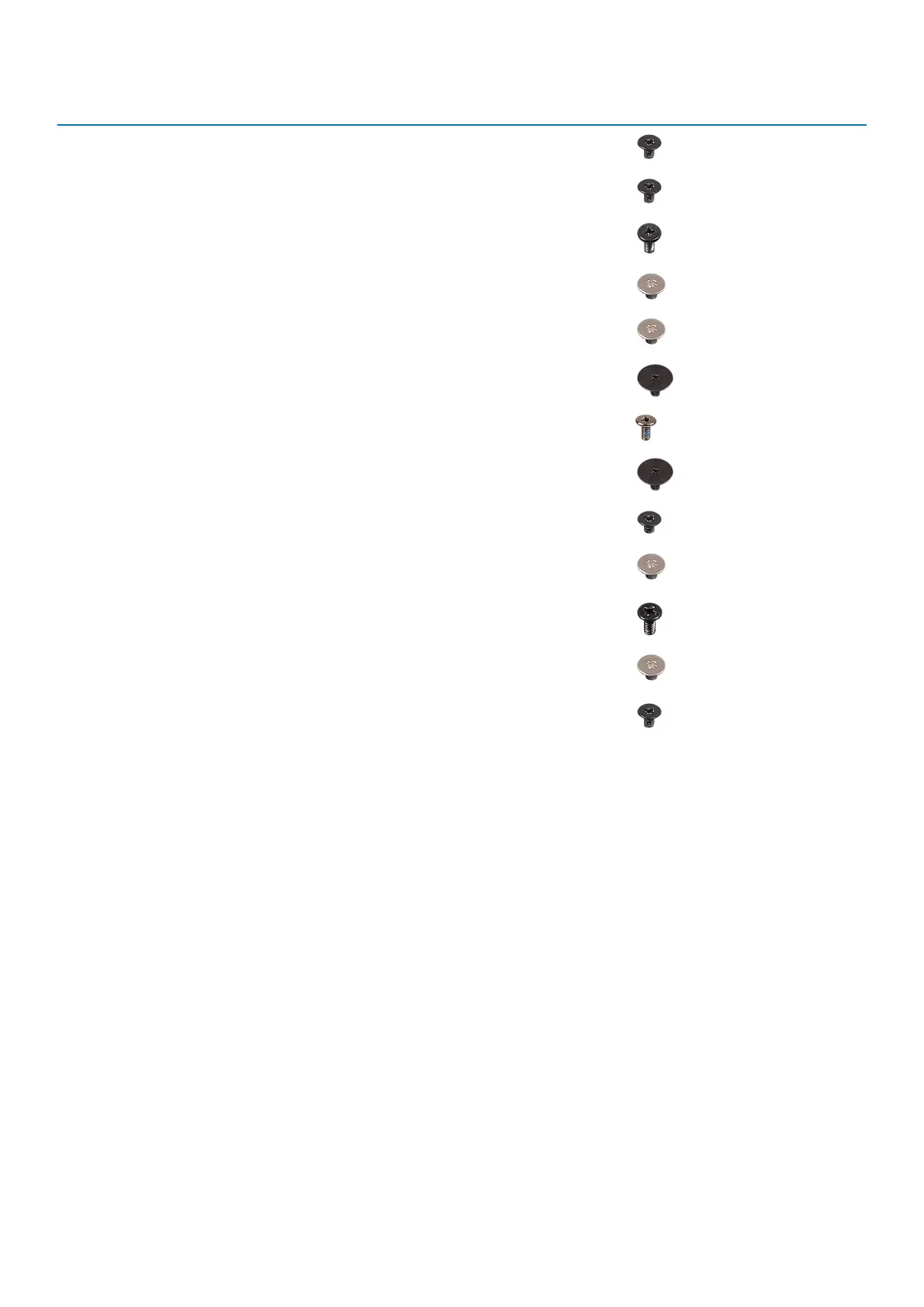

Component Screw type Quantity Screw image
Heat sink M2x3 3
VGA daughterboard M2x3 2
I/O board M2x4 1
Touchpad M2x2 4
Touch pad bracket M2x2 2
Power-button board M2x2 Big Head 1
System board M2x4 1
Power button with fingerprint
reader (optional)
M2x2 Big Head 1
Power-adapter port M2x3 1
Display panel M2x2 4
Hinges
M2.5x2.5
M2x2
8
2
Wireless-card bracket M2x3 1
Micro Secure Digital Card
Removing the Micro Secure Digital card
Prerequisites
1. Follow the procedure in Before working inside your computer
Steps
1. Push the micro secure digital card to release it from the computer.
2. Slide the micro secure digital card out of the computer.
14
Removing and installing components
