Dell Vostro 3580 User Manual

5. Remove the battery
6. Remove the WLAN
7. Remove the SSD
8. Remove the hard drive assembly
9. Remove the system fan
10. Remove the heatsink
11. Remove the display assembly
12. Remove the display bezel
13. Remove the display panel
14. Remove the display hinges
Steps

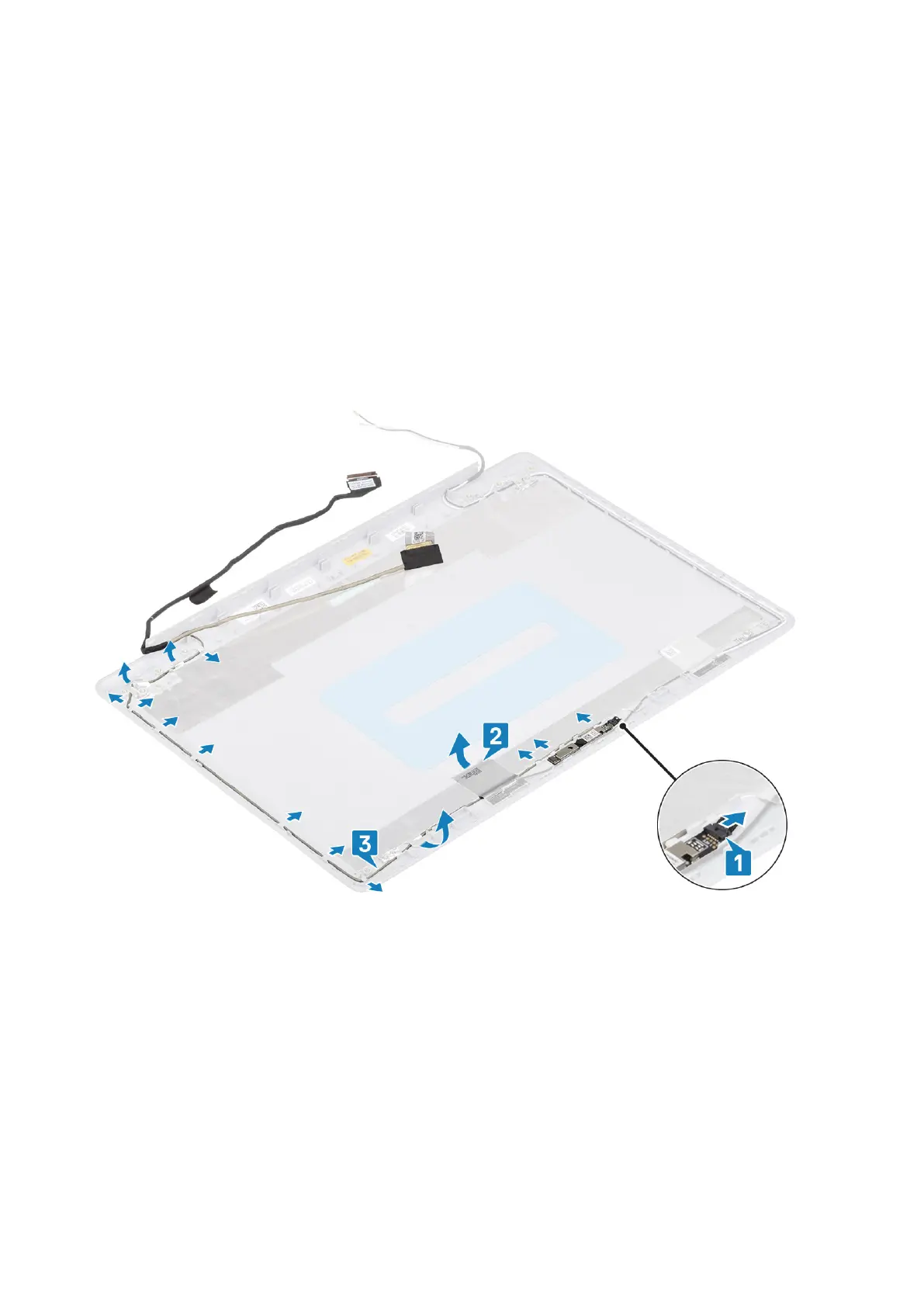

1. Disconnect the camera cable on the display back-cover and antenna assembly [1].
2. Peel the adhesive that secures the camera cable [2].
3. Remove the camera cable and the display cable from the routing guides on the display back-cover and antenna assembly[3]
Installing the display cable
Steps
1. Route the camera cable through the routing guides on the display back-cover and antenna assembly [1].
2. Affix the adhesive that secures the camera cable [2].
3. Connect the camera cable on the display back-cover and antenna assembly [3].
Removing and installing components
81

Dell Vostro 3580 Specifications

General

Processor	8th Generation Intel Core i5-8265U Processor (6MB Cache, up to 3.9 GHz)
Display	15.6-inch HD (1366 x 768)
RAM	4GB/8GB/16GB DDR4
Storage	1TB 5400 rpm 2.5" SATA Hard Drive
Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro (64-bit)
Battery	42WHr, 3-Cell Battery (integrated)
Ports	2 x USB 3.1, 1 x USB 2.0, HDMI, Ethernet, SD card reader
Wireless	802.11ac Wi-Fi
Optical Drive	Optional DVD-RW
Camera	HD 720p
Audio	Stereo speakers
