Dell Vostro 3580 - Installing the VGA Cable

13. Remove the IO board
14. Remove the display assembly
15. Remove the system board
Steps

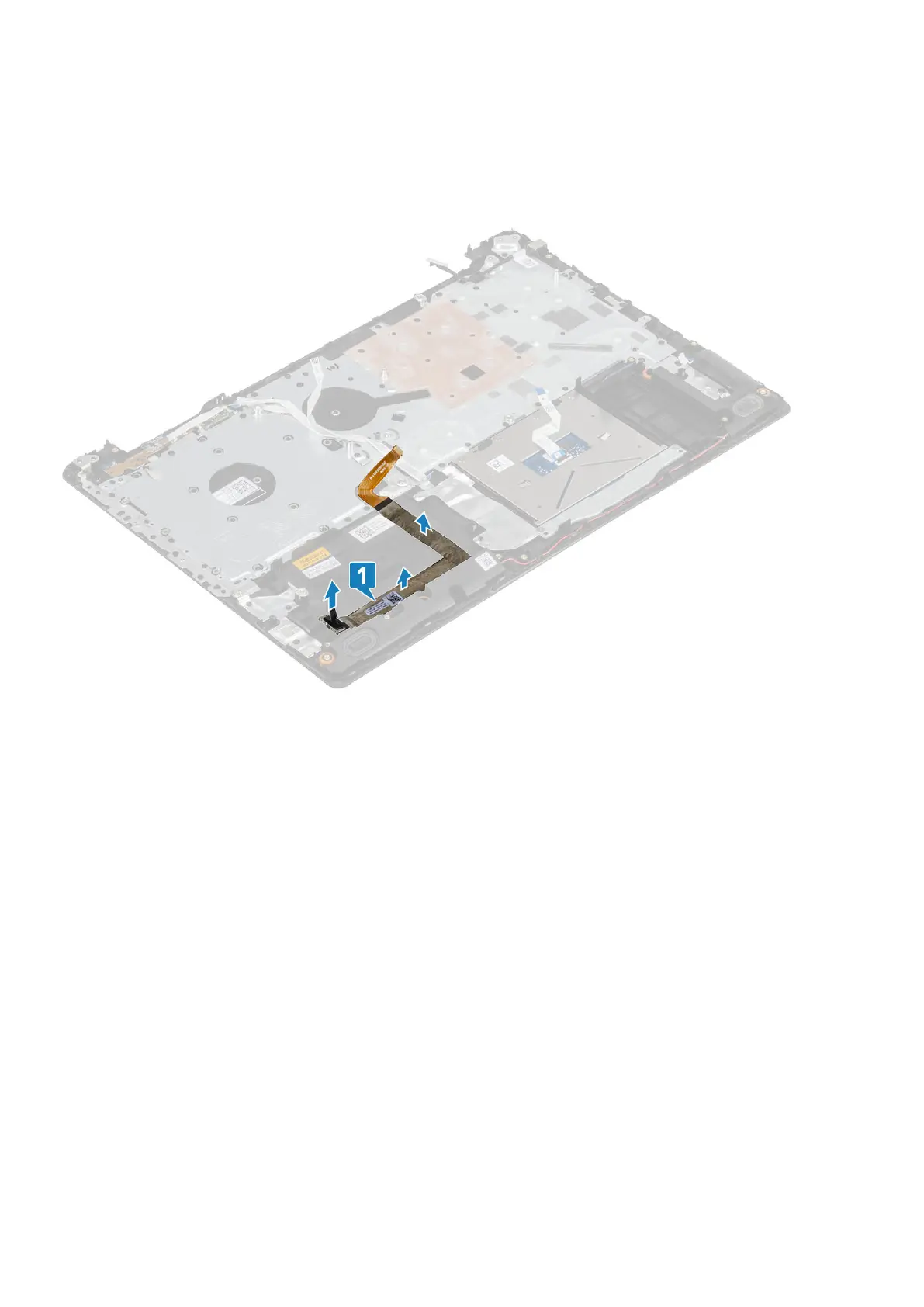

Disconnect the VGA cable and remove it from the palmrest and keyboard assembly [1].
Installing the VGA cable
Steps
Connect the VGA cable and affix it to the palmrest and keyboard assembly [1].
Removing and installing components
43
