Installing the power button board
Steps

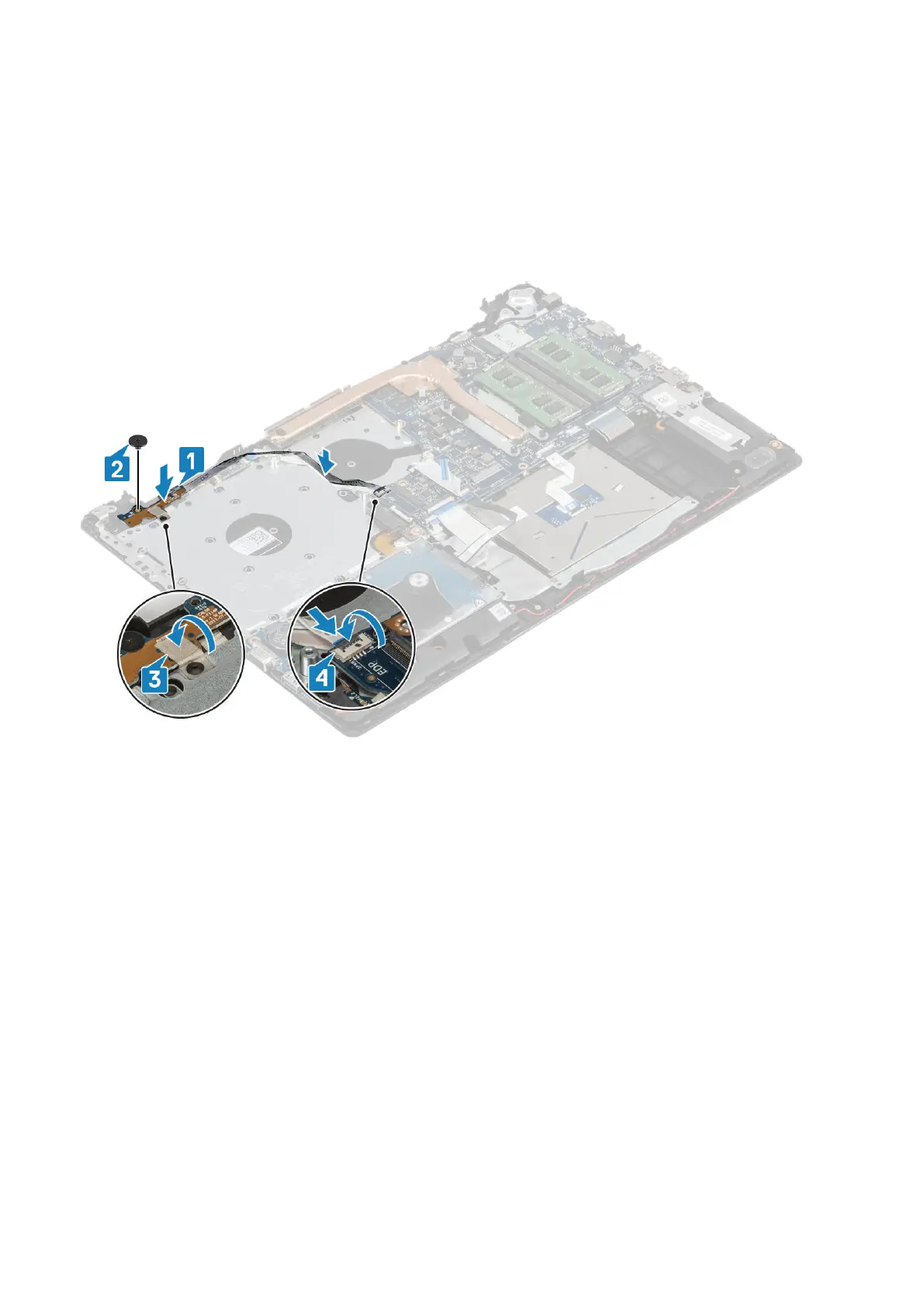

1. Place the power-button board into the slot on the palmrest and keyboard assembly [1].
2. Replace the single (M2x2) screw that secures the power button board to the palmrest and keyboard assembly [2].
3. Affix the conductive tape to the power button board [3].
4. Slide the power button cable to the system board and close the latch to secure the cable [4].
Next steps
1. Replace the display assembly
2. Replace the system fan
3. Replace the WLAN
4. Connect the battery cable to the connector on the system board.
5. Replace the base cover
6. Replace the optical drive assembly
7. Replace the SD memory card
8. Follow the procedure in after working inside your computer
System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the base cover
4. Remove the battery
