Installing the base cover
Steps

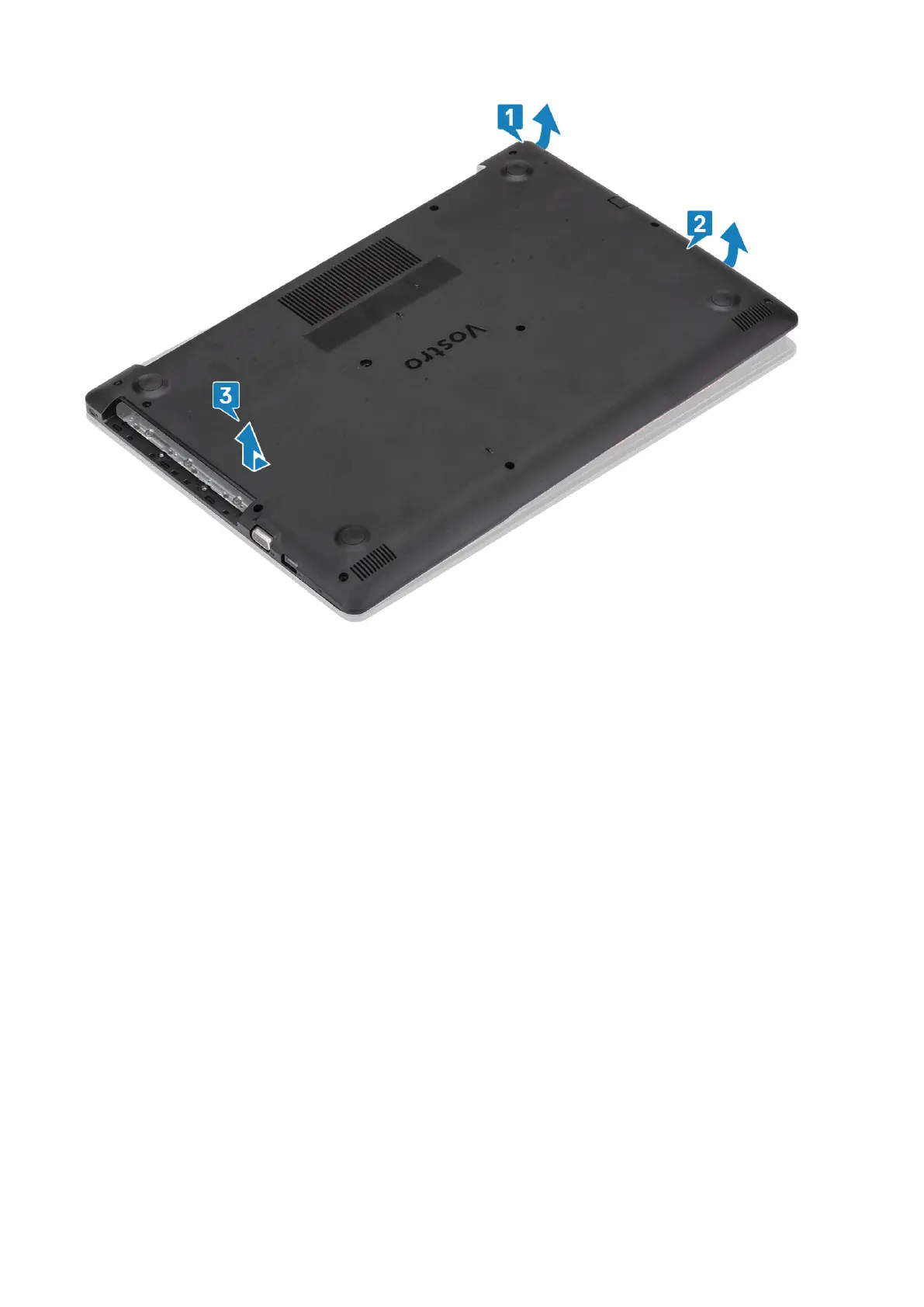

1. Place the base cover on the palmrest and keyboard assembly [1].
2. Press the right side of the base cover until it snaps into place [2, 3].
20
Removing and installing components
