Dell Vostro 3580 - Page 57

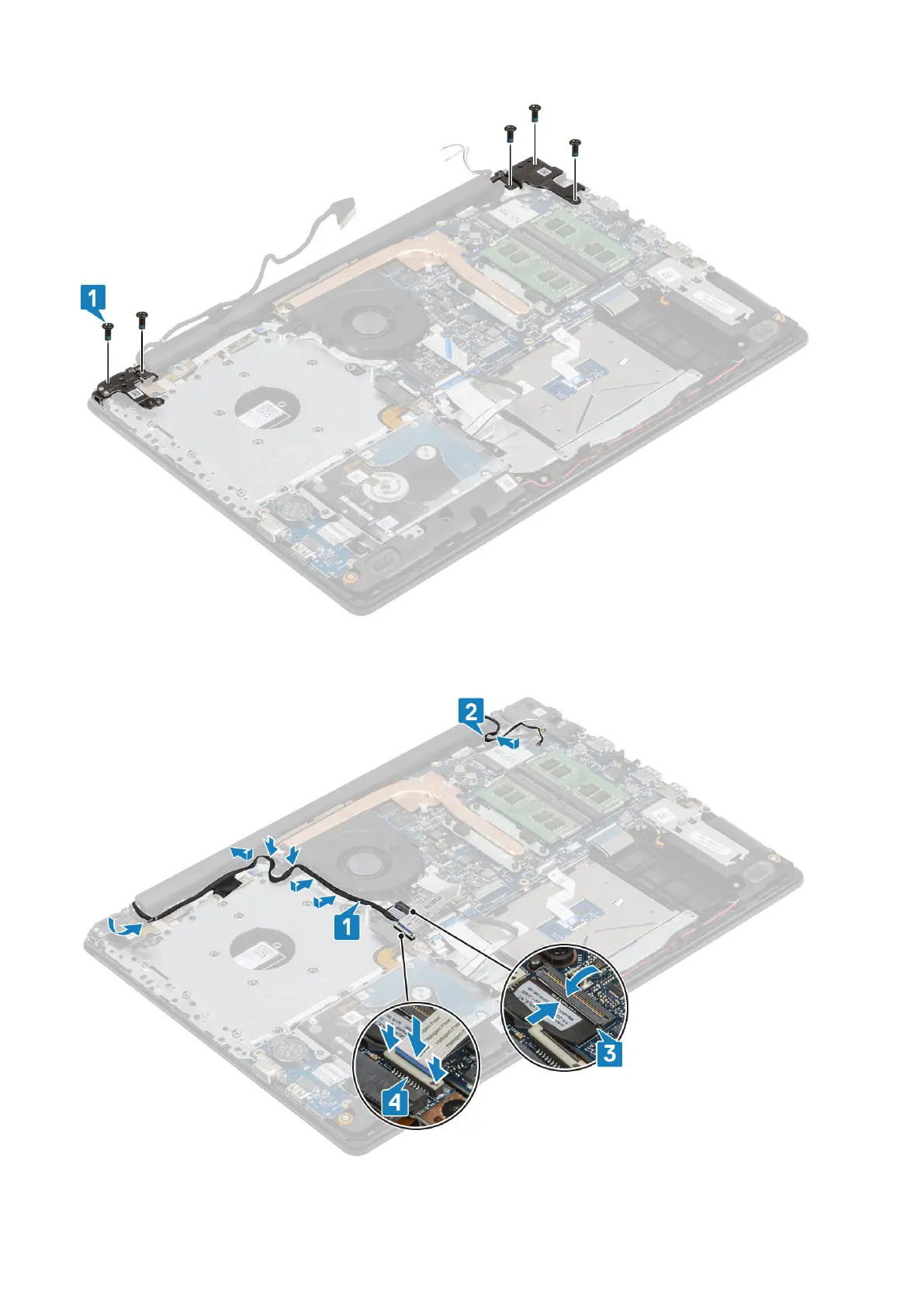

5. Route the display cable through the routing guides on the palmrest and keyboard assembly [1].
6. Affix the antenna cables to the system board [2].
7. Connect the display cable and the optical drive cable to the connector on the system board [3, 4].
Removing and installing components
57
