System fan
Removing the system fan
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the base cover
4. Disconnect the battery cable from the connector on the system board.
Steps

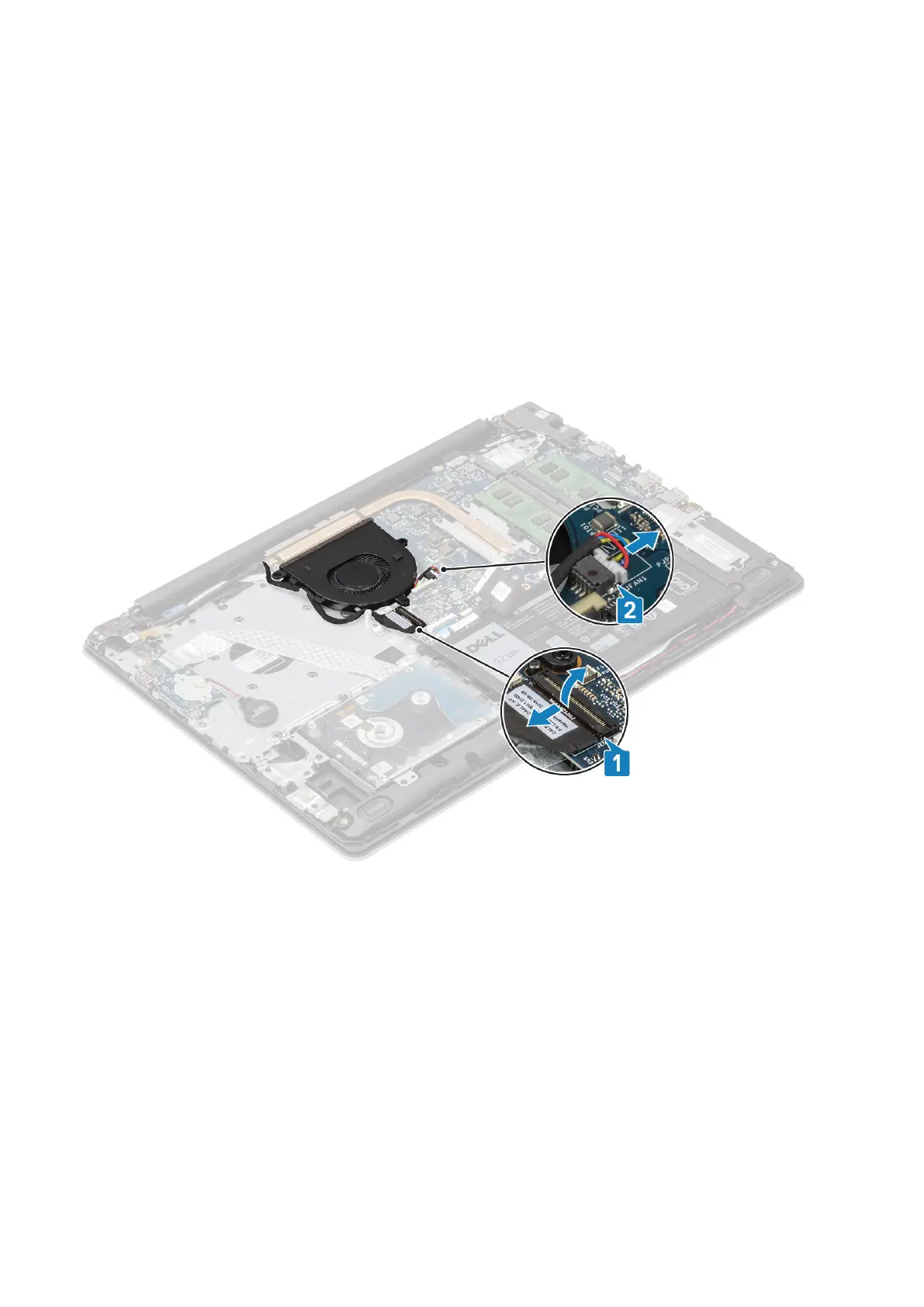

1. Disconnect the display cable and fan cable from the system board [1, 2].
2.
Unroute the display cable from the routing guides on the fan .
Removing and installing components
35
