5. Replace the WLAN
6. Replace the memory
7. Replace the battery
8. Replace the base cover
9. Replace the SD memory card
10. Follow the procedure in after working inside your computer
Power-adapter port
Removing the power adapter port
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the base cover
4. Remove the battery
5. Remove the WLAN
6. Remove the SSD
7. Remove the display assembly
8. Remove the power button board
Steps

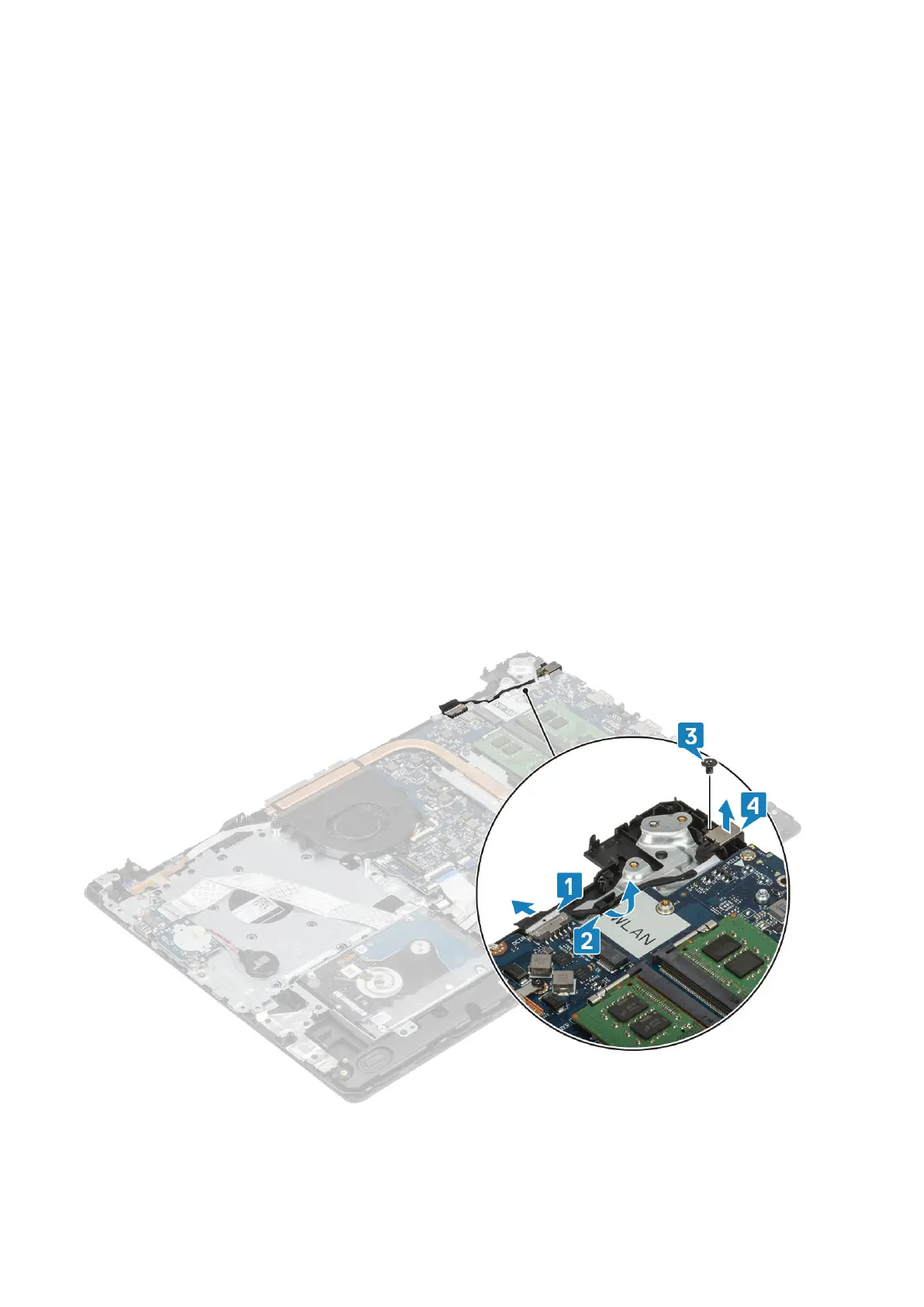

1. Disconnect and route the power adapter cable from the system board [1, 2].
2. Remove the single (M2x3) screw that secures the power adapter port to the palmrest and keyboard assembly [3].
3. Lift the power adapter port, along with its cable, off the palmrest and keyboard assembly [4].
64
