Installing the IO board
Steps

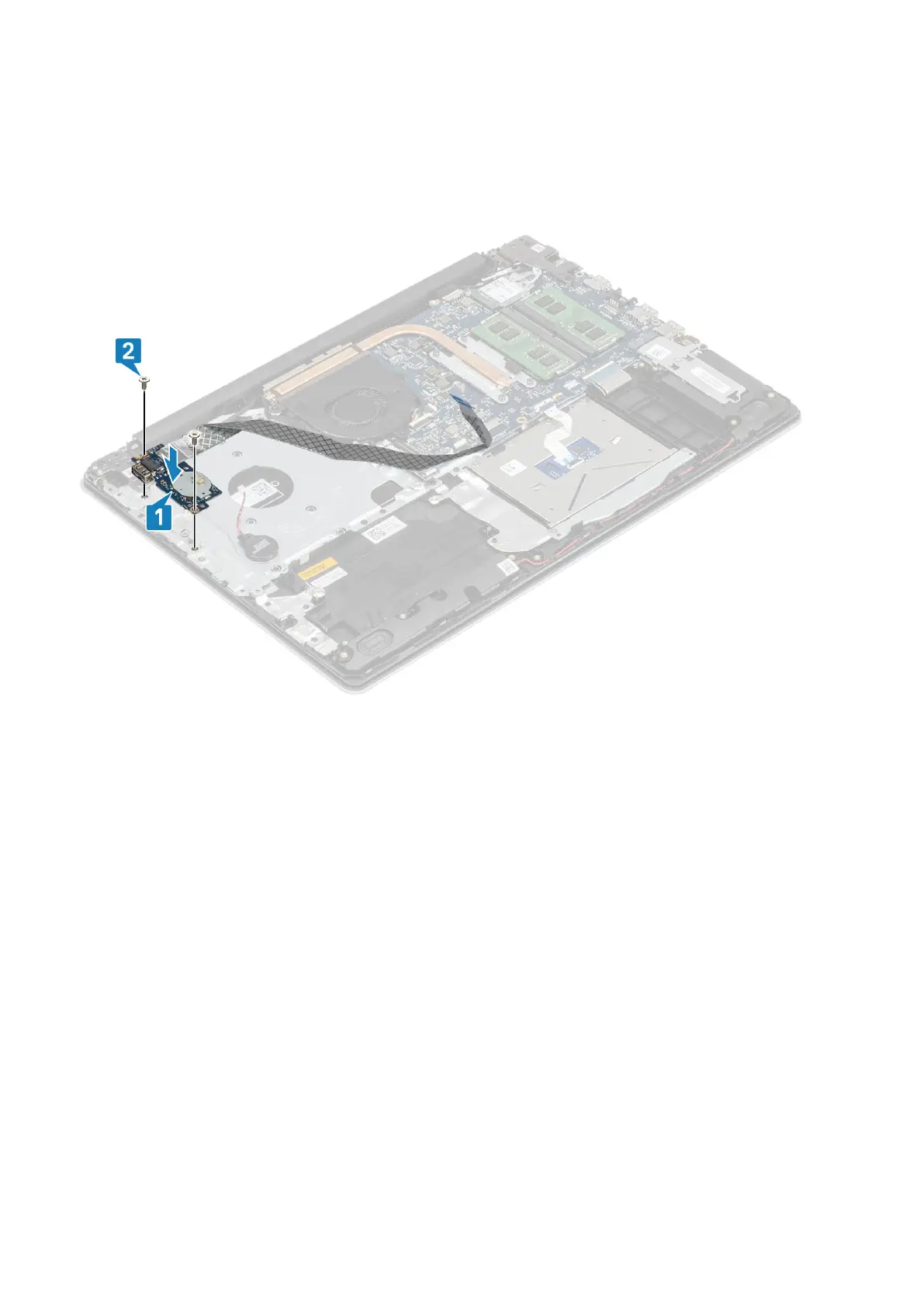

1. Using the alignment posts, place the I/O board on the palm rest and keyboard assembly [1].
2. Replace the two (M2x4) screws that secure the I/O board to the palm rest and keyboard assembly [2].
3.
Connect the coin-cell battery cable to the I/O board [1].
4. Connect the I/O board cable to the system board and close the latch to secure the cable [2].
44
Removing and installing components
