Dell Vostro 3583 - Installing the Display Hinges

Installing the display hinges
Steps

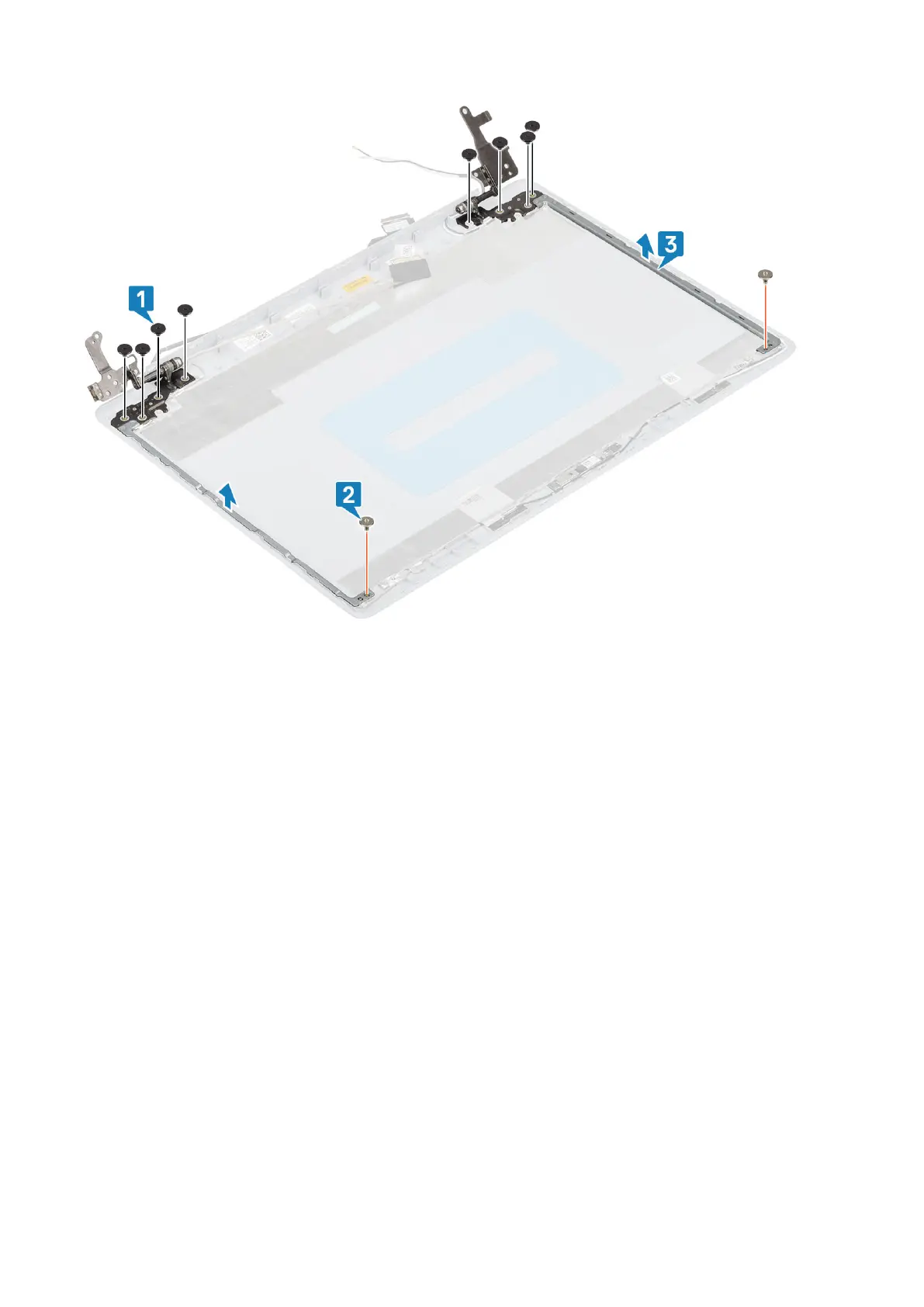

1. Align the screw holes on the hinges and brackets with the screw holes on the display back-cover and antenna assembly [1].
2. Replace the eight (M2.5x2.5) screws and two (M2x2) screws that secure the hinges to the display back-cover and antenna assembly
[3,2 ].
74
Removing and installing components
