Dell Vostro 3583 - Installing the System Fan

Installing the system fan
Steps

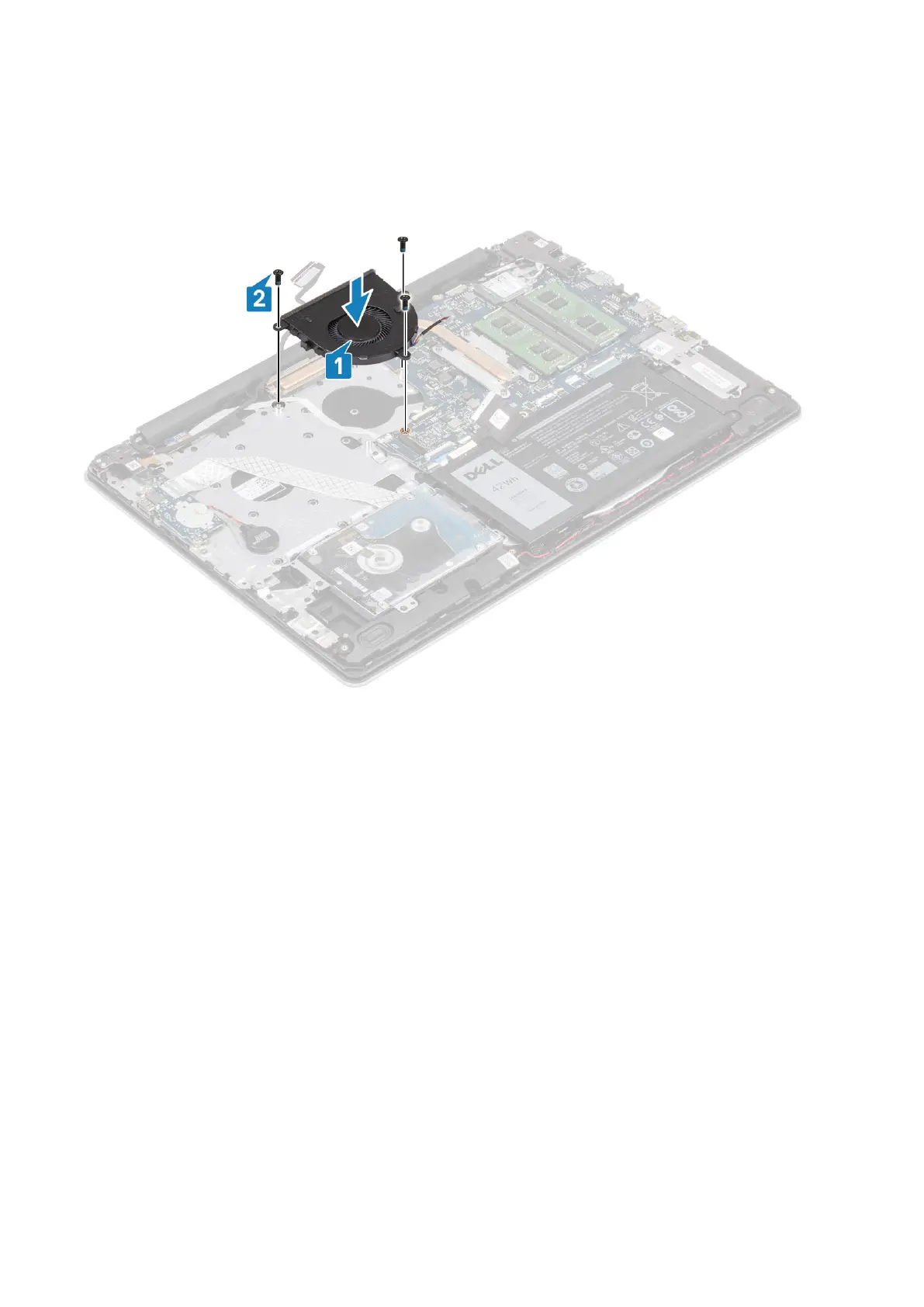

1. Align the screw holes on the fan with the screw holes on the palm rest and keyboard board assembly [1].
2. Replace the three (M2.5x5) screws that secure the fan to the palm rest and keyboard board assembly [2].
3.
Route the display cable through the routing guides on the fan [1].
