Dell Vostro 3583 - Power Button; Removing the Power Button

Next steps
1. Replace the power button board
2. Replace the display assembly
3. Remove the system fan
4. Replace the WLAN
5. Connect the battery cable to the connector on the system board.
6. Replace the base cover
7. Replace the SD memory card
8. Follow the procedure in after working inside your computer
Power button
Removing the power button
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the base cover
4. Disconnect the battery cable from the connector on the system board.
5. Remove the WLAN
6. Remove the system fan
7. Remove the heatsink
8. Remove the display assembly
9. Remove the power button board
Steps

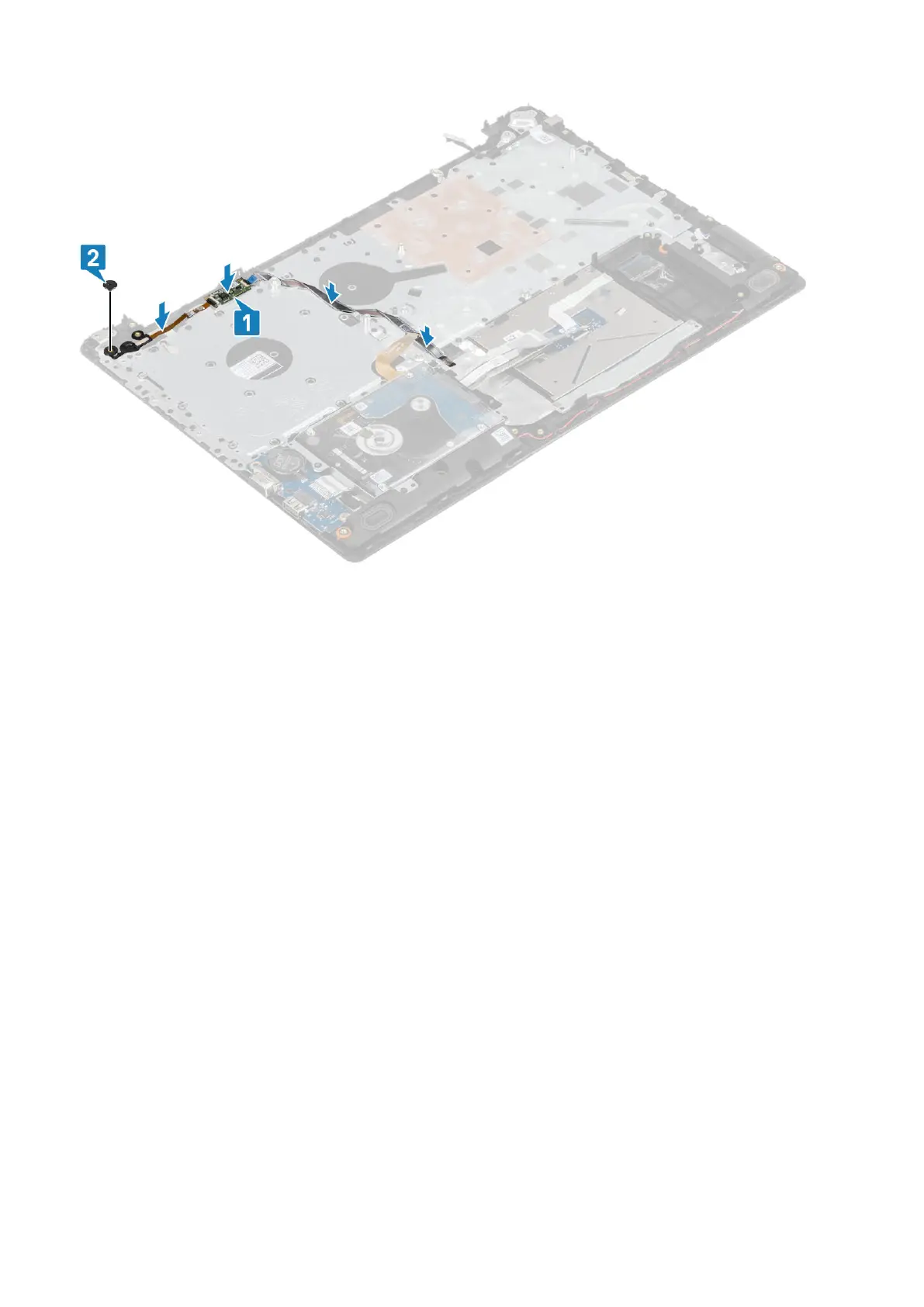

1. Remove the single (M2x2) screw that secures the power button on the palmrest and keyboard assembly [1].
2. Lift the power button off the palmrest and keyboard assembly [2].
Removing and installing components
57
