Dell Vostro 3583 - Installing the Power Button with Fingerprint Reader

6. Remove the system fan
7. Remove the heatsink
8. Remove the display assembly
9. Remove the power button board
Steps

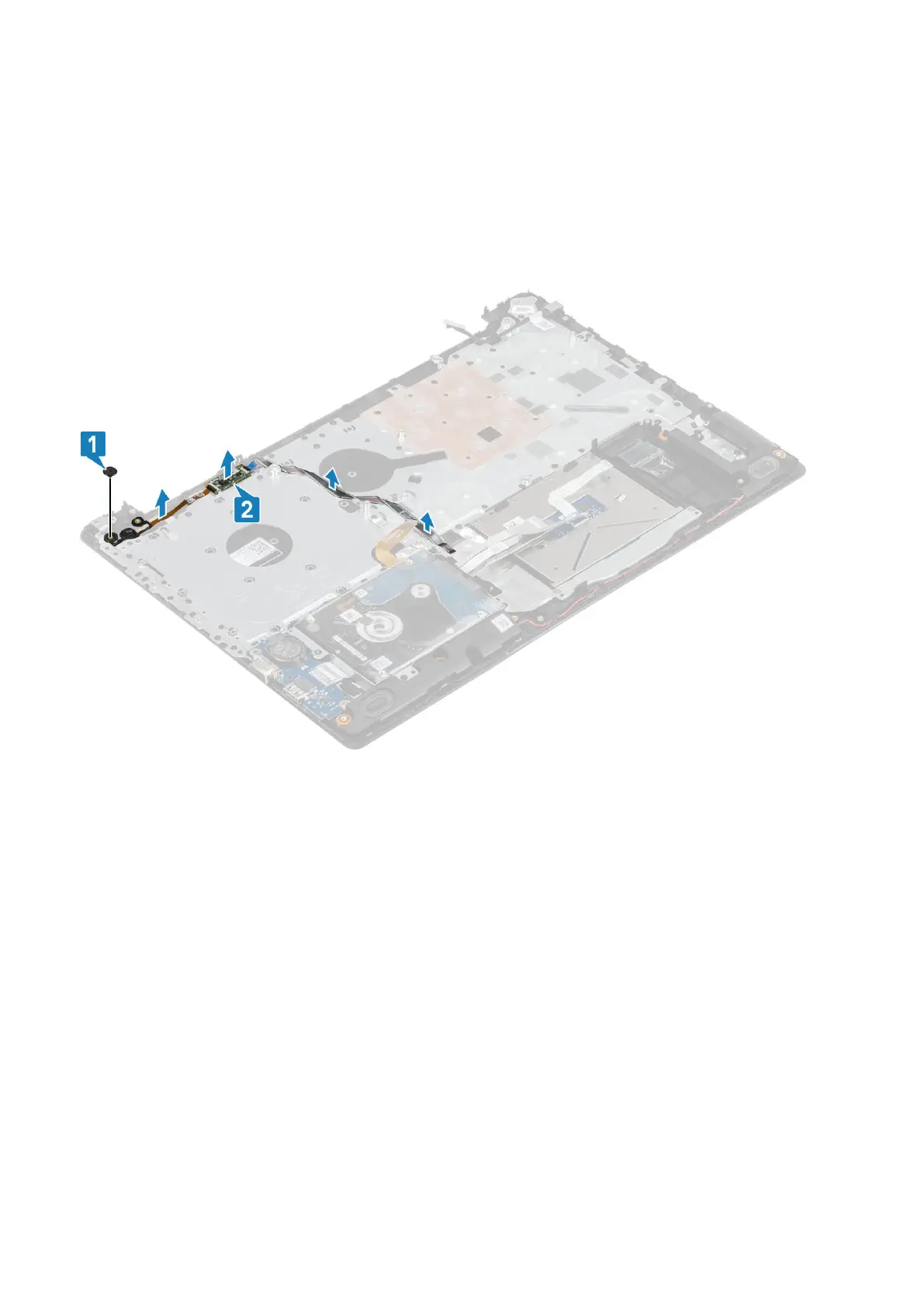

1. Remove the single (M2x2) screw that secures the power button on the palmrest and keyboard assembly [1].
2. Lift the power button with fingerprint reader board off the palmrest and keyboard assembly [2].
3. Peel the fingerprint reader cable off the palmrest and keyboard assembly.
Installing the power button with fingerprint reader
Steps
1. Affix the fingerprint reader cable on the palm rest and keyboard assembly.
2. Using the alignment posts, align and place the power button on the palmrest and keyboard assembly [1].
3. Replace the single (M2x2) screw that secures the power button on the palmrest and keyboard assembly [2].
