Dell Vostro 3583 - System Board Replacement

Next steps
1. Replace the power button board
2. Replace the display assembly
3. Remove the system fan
4. Replace the WLAN
5. Connect the battery cable to the connector on the system board.
6. Replace the base cover
7. Replace the SD memory card
8. Follow the procedure in after working inside your computer
System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the base cover
4. Remove the battery
5. Remove the memory
6. Remove the WLAN
7. Remove the SSD
8. Remove the system fan
9. Remove the heatsink
10. Remove the display assembly
Steps

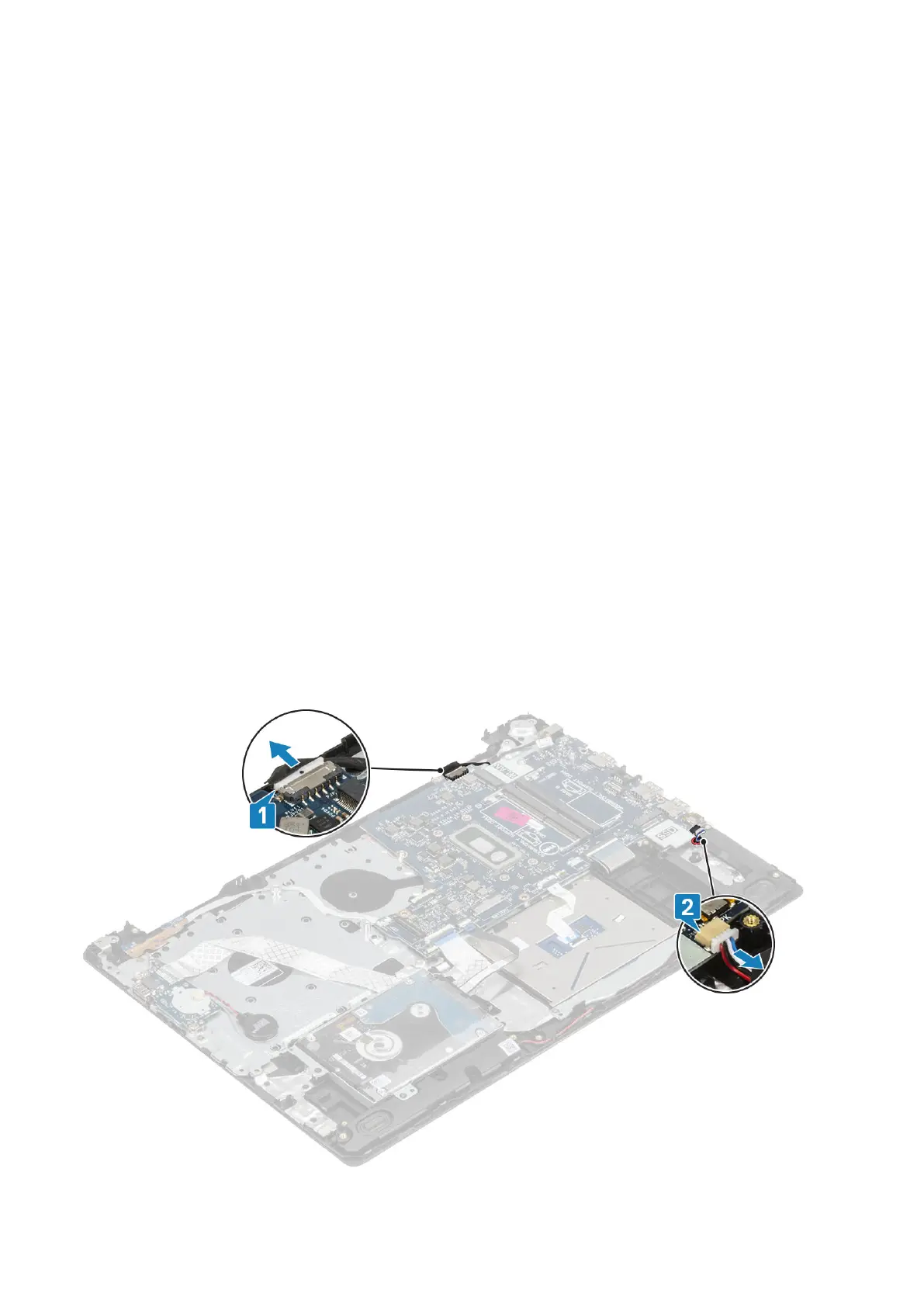

1. Disconnect the power adapter port cable and speaker cable from the system board [1, 2].
