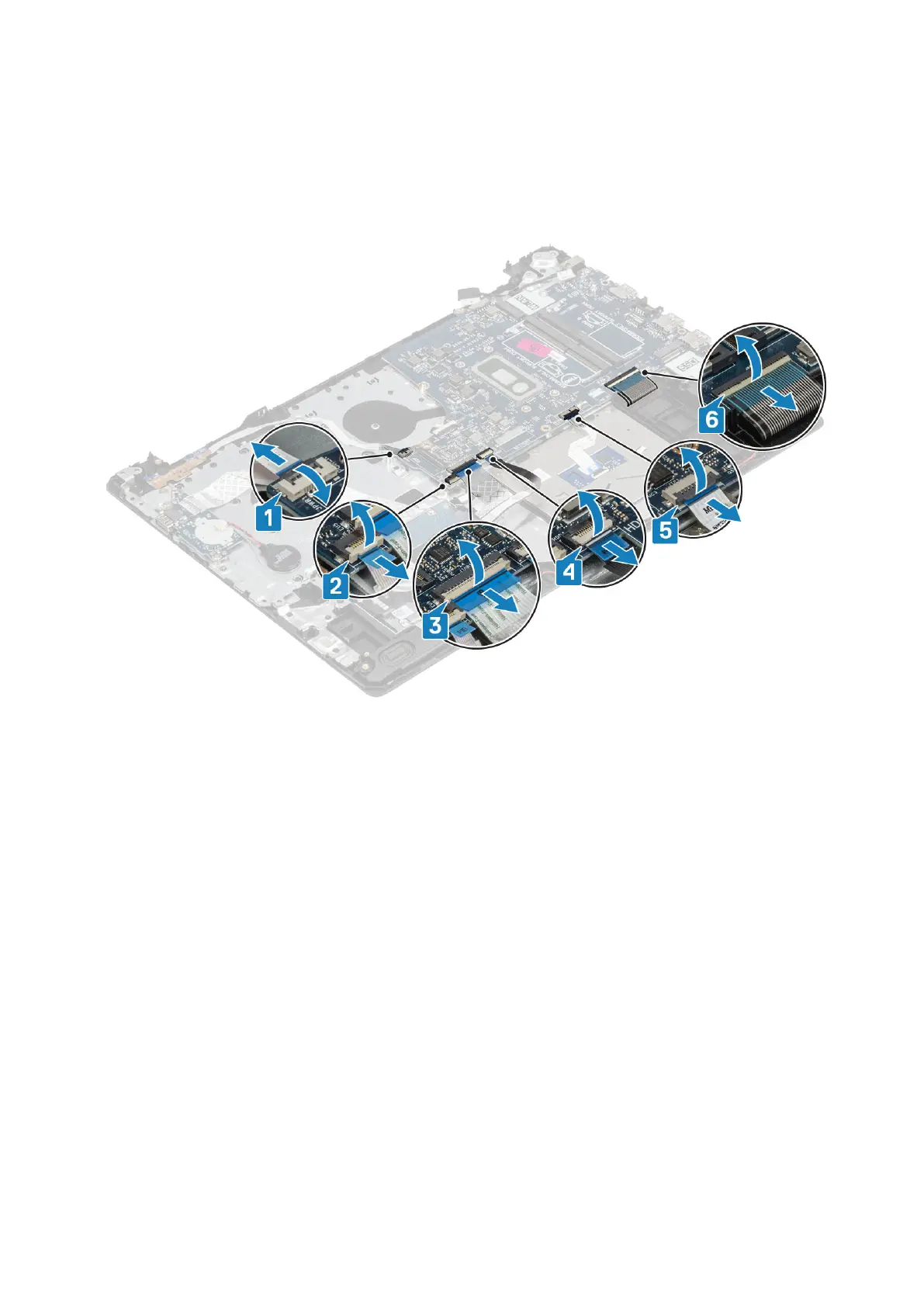

2. Disconnect the following cables from the system board:
a) Power button board cable [1].
b) Finger print board cable [2].
c) IO board cable [3].
d) Hard drive cable [4].
e) Touchpad cable [5].
f) Keyboard cable [6].
3.
Remove the single (M2x4) screw that secures the system board to the palmrest and keyboard assembly [1].
4. Lift the system board off the palmrest and keyboard assembly [2].
