Dell Vostro 3583 - Installing the Display Cable

6. Remove the SSD
7. Remove the hard drive assembly
8. Remove the system fan
9. Remove the heatsink
10. Remove the display assembly
11. Remove the display bezel
12. Remove the display panel
13. Remove the display hinges
Steps

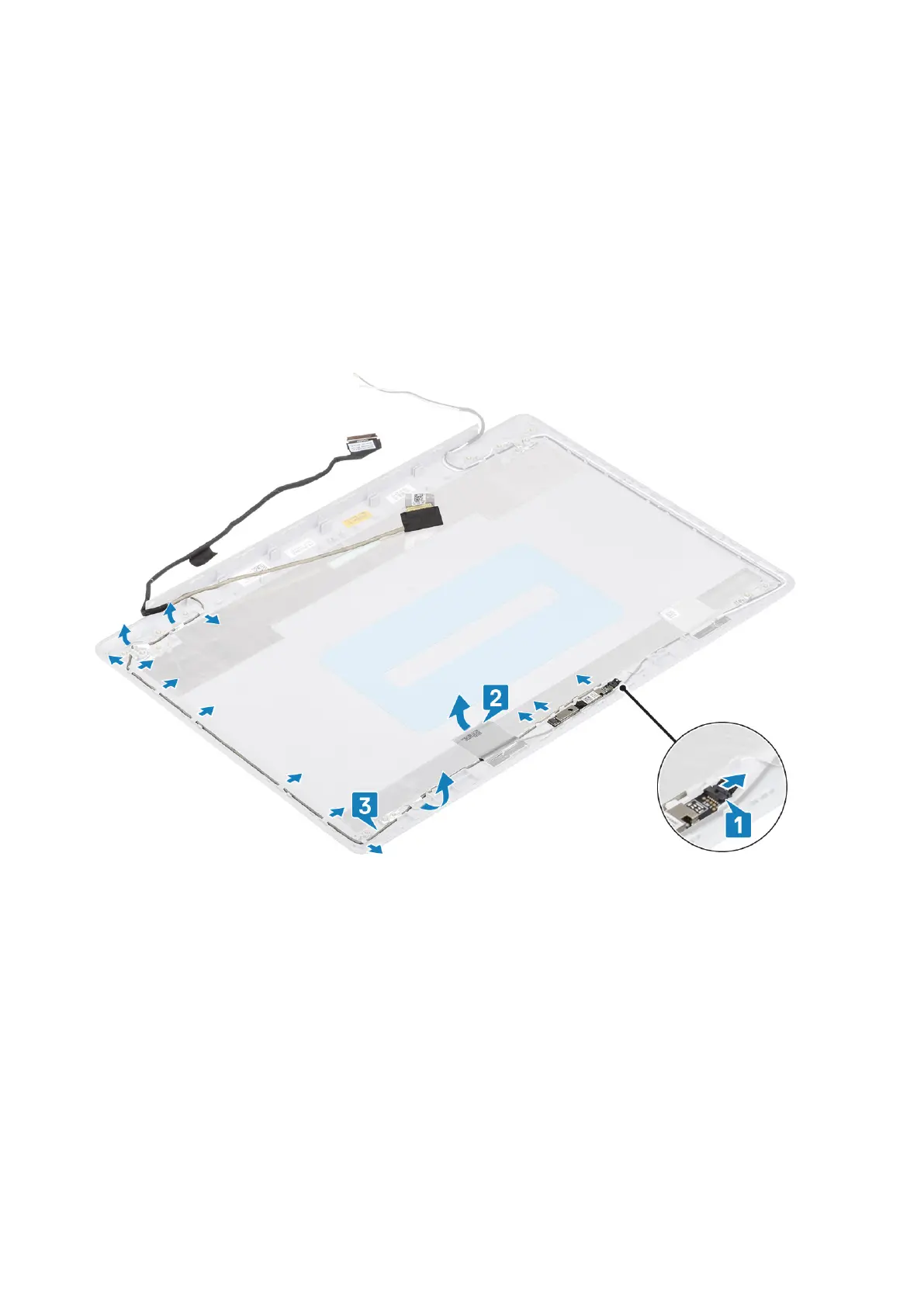

1. Disconnect the camera cable on the display back-cover and antenna assembly [1].
2. Peel the adhesive that secures the camera cable [2].
3. Remove the camera cable and the display cable from the routing guides on the display back-cover and antenna assembly[3]
Installing the display cable
Steps
1. Route the camera cable through the routing guides on the display back-cover and antenna assembly [1].
2. Affix the adhesive that secures the camera cable [2].
3. Connect the camera cable on the display back-cover and antenna assembly [3].
