Dell Vostro 3583 - Page 43

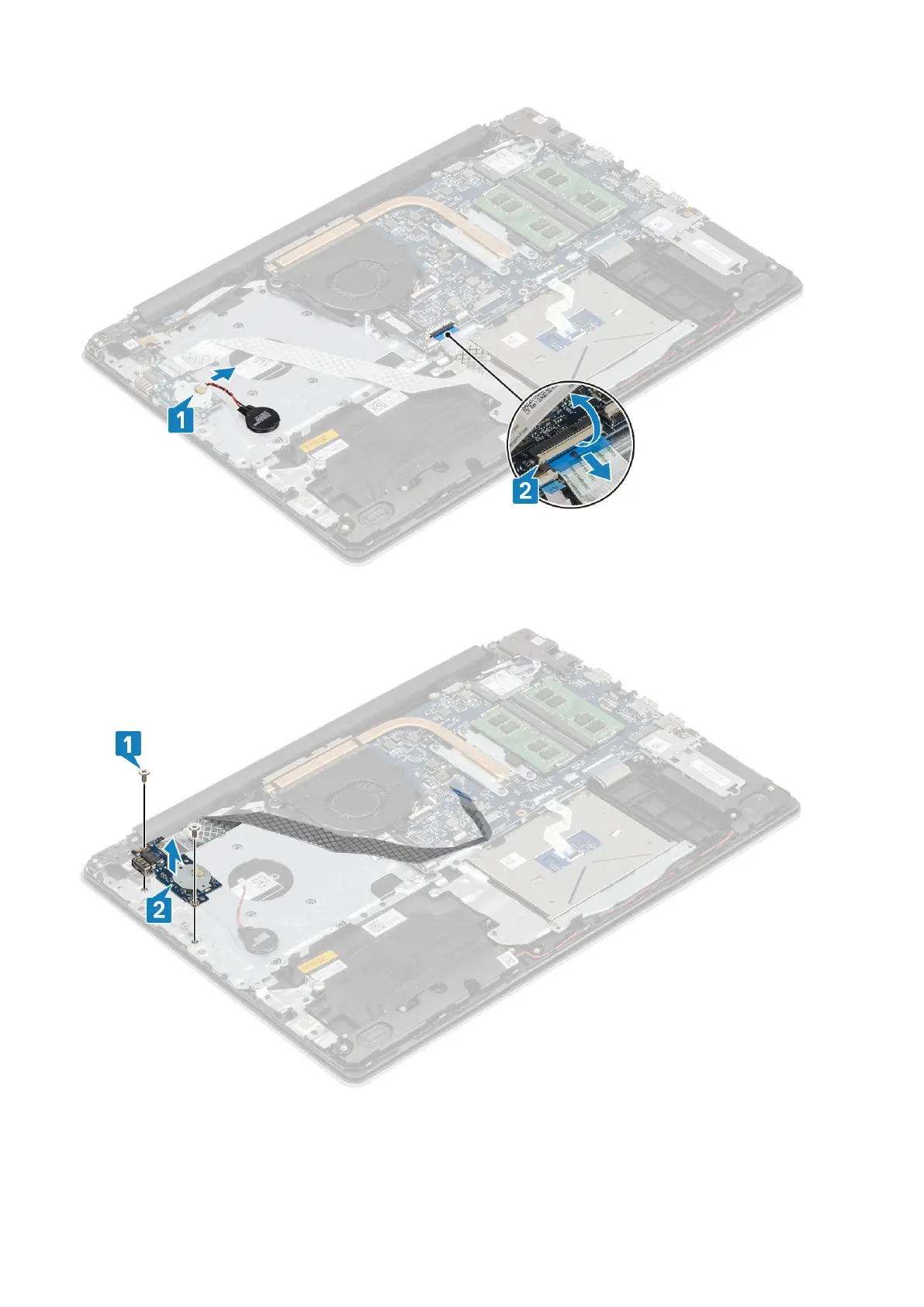

3. Remove the two (M2x4) screws that secure the I/O board to the palm rest and keyboard assembly [1].
4. Lift the I/O board, along with the cable, off the palm rest and keyboard assembly [2].
Removing and installing components
43
