Dell Vostro 3583 - Page 53

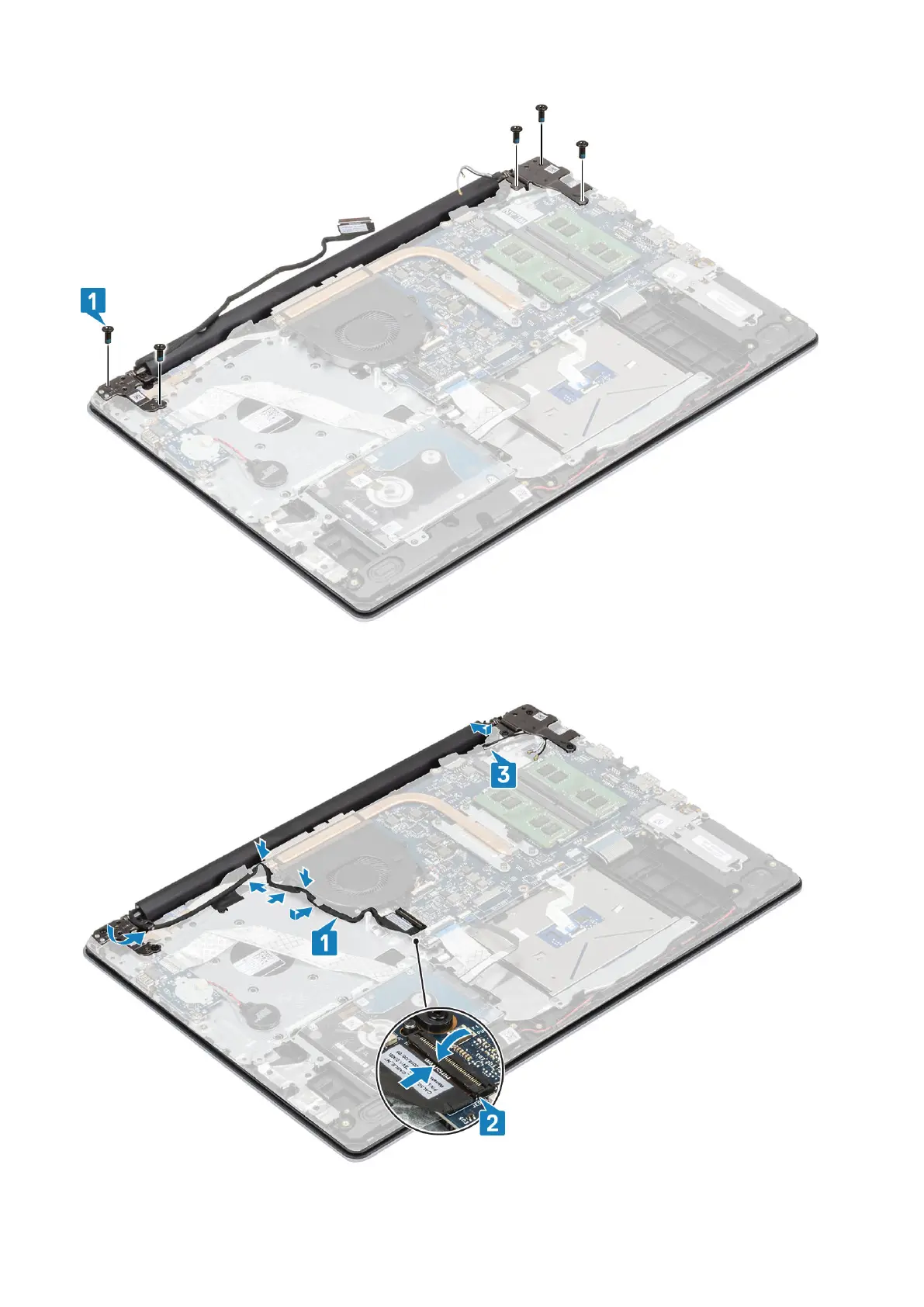

5. Route the display cable through the routing guides on the palmrest and keyboard assembly [1].
6. Connect the display cable to the connector on the system board [2].
7. Affix the antenna cables to the system board [3].
Removing and installing components
53
