Dell Vostro 5401 - Memory Modules; Removing the Memory Modules - UMA

Steps

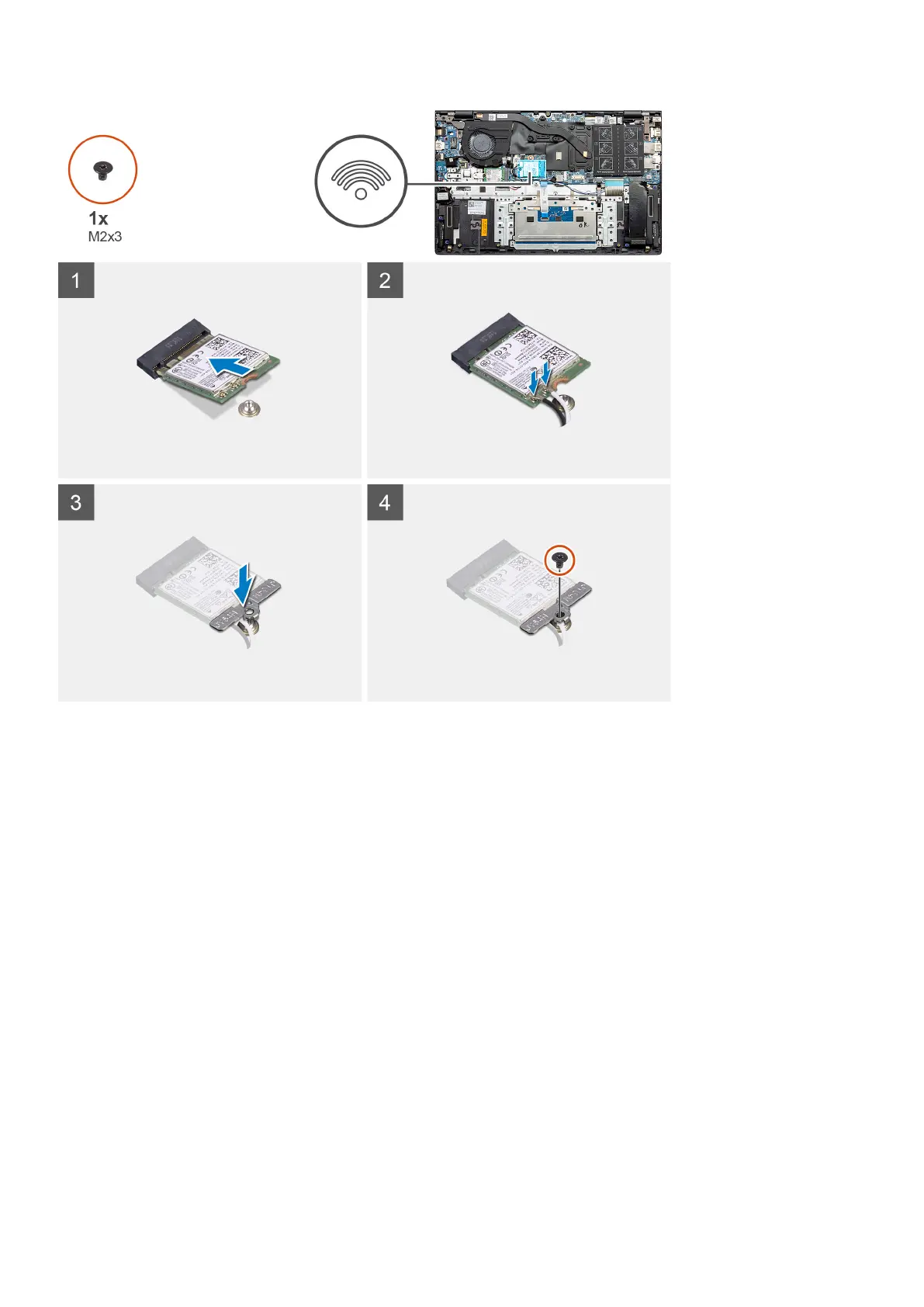

1. Align the notch on the WLAN card with the tab on the WLAN card slot and insert the WLAN card at an angle into the WLAN
card slot.
2. Connect the antenna cables to the WLAN card.
3. Align and place the WLAN card bracket on the WLAN card.
4. Replace the screw (M2x3) to secure the WLAN card bracket to the WLAN card.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Memory modules
Removing the memory modules - UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery.
26
Disassembly and reassembly
