Dell Vostro 5401 - DC-In Port; Removing the DC-In Port - UMA

About this task

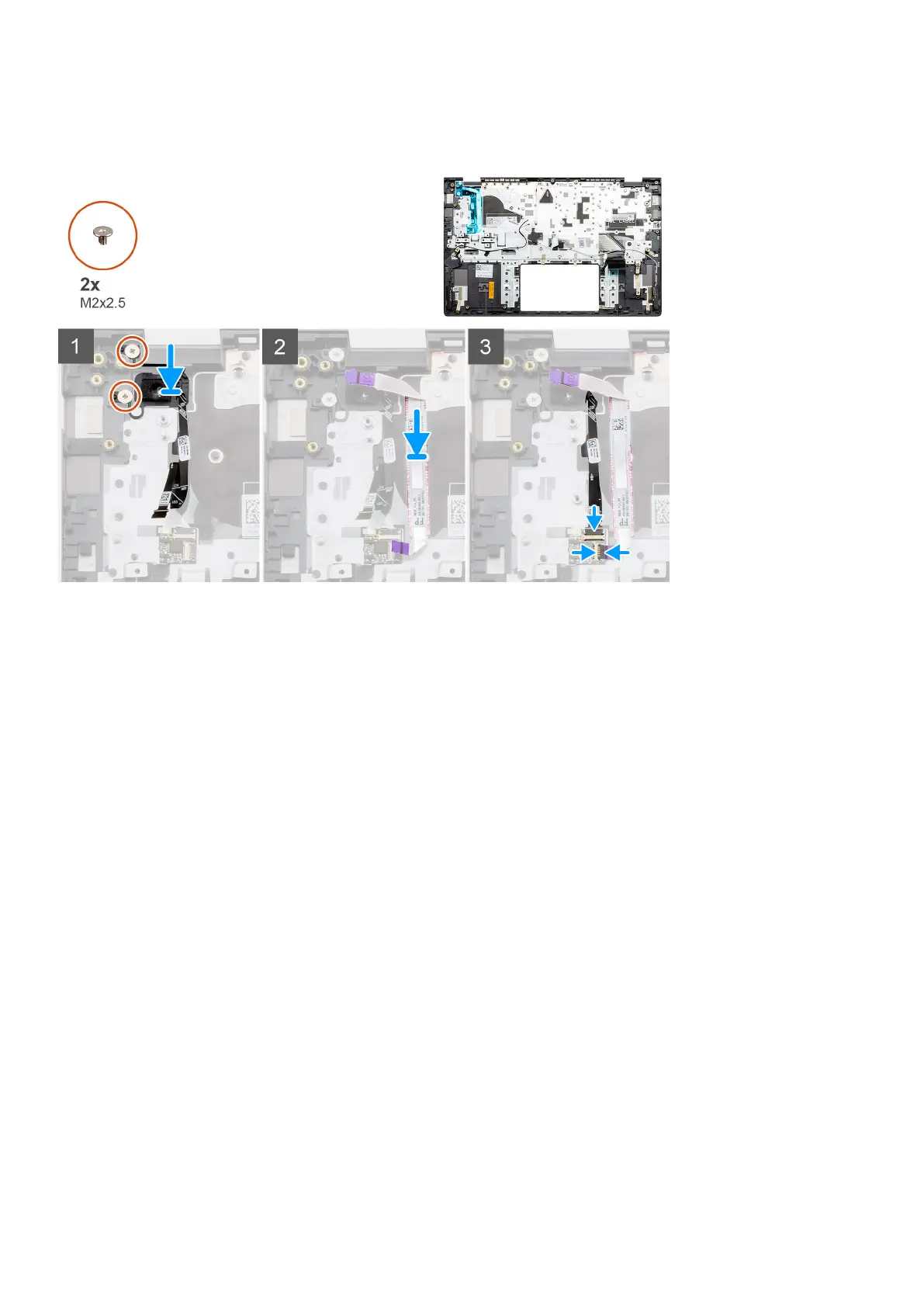

The figure indicates the location of the power button with fingerprint reader and provides a visual representation of the
installation procedure.
Steps
1. Using the alignment post, place the power button with fingerprint reader on the palm-rest and keyboard assembly.
2. Replace the two screws (M2x2.5) to secure the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
3. Plug the I/O cable into the connector on palm-rest and keyboard assembly and close the latch.
4. Plug the fingerprint reader cable into the connector on palm-rest and keyboard assembly.
Next steps
1. Install the I/O board.
2. Install the system fan.
3. Install the coin-cell battery.
4. Install the M.2 2280 SSD or M.2 2230 SSD.
5. Install the battery.
6. Install the base cover.
7. Follow the procedure in after working inside your computer.
DC-in port
Removing the DC-in port - UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
Disassembly and reassembly
