Steps

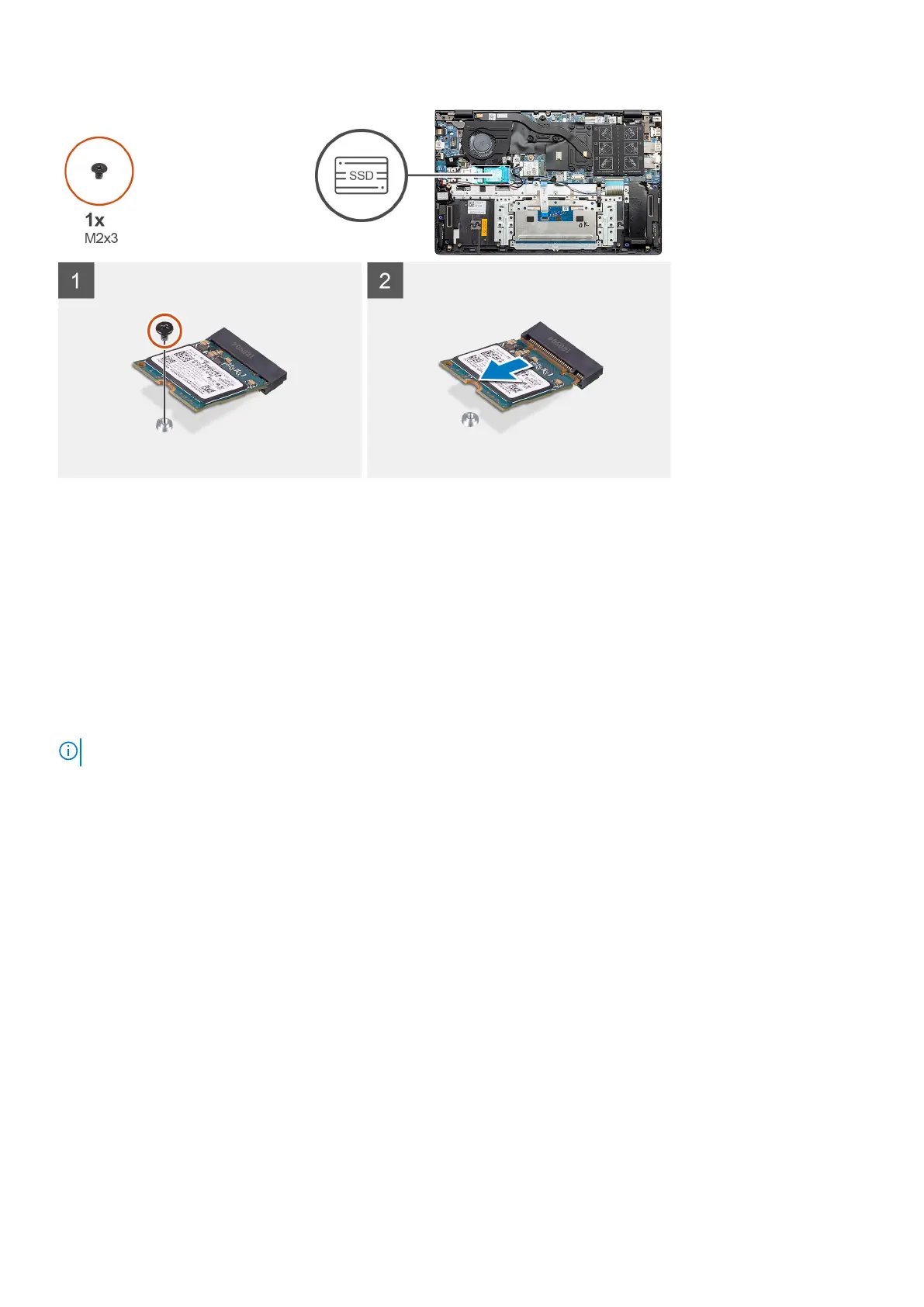

1. Remove the single screw (M2x3) that secures the solid-state drive to the palm-rest and keyboard assembly.
2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board.
Installing the M.2 2230 solid-state drive - SSD-1 - discrete
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: Slot one supports both M.2 2230 and M.2 2280 SSD.
The figure indicates the location of the solid-state drive in slot one and provides a visual representation of the bracket alignment
procedure to accommodate the M.2 2230 solid-state drive.
36
Disassembly and reassembly
