About this task

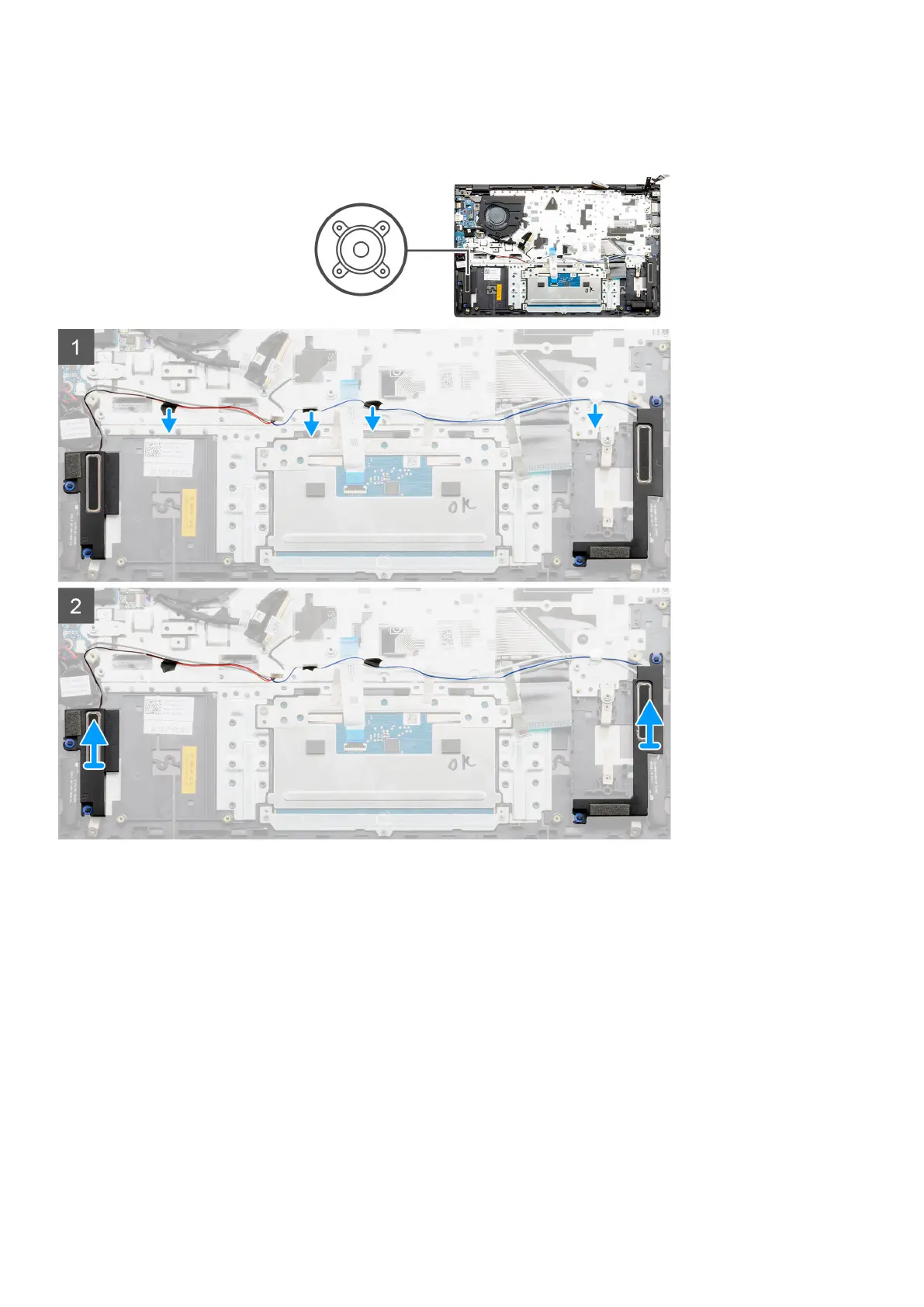

The figure indicates the location of the speakers in a system configuration with 4-cell battery and provides a visual
representation of the removal procedure.
Steps
1. Locate the speakers on your computer.
2. Disconnect the speaker cable from the connector on the system board.
3. Peel the adhesive tape that secures the speaker cable.
4. Unroute the speaker cables from the retention clips on the computer.
5. Lift the speakers, along with the cable, off the palm-rest and keyboard assembly.
Installing the speakers (in 4-cell battery configuration)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Disassembly and reassembly
