Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Removing the system fan - discrete
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

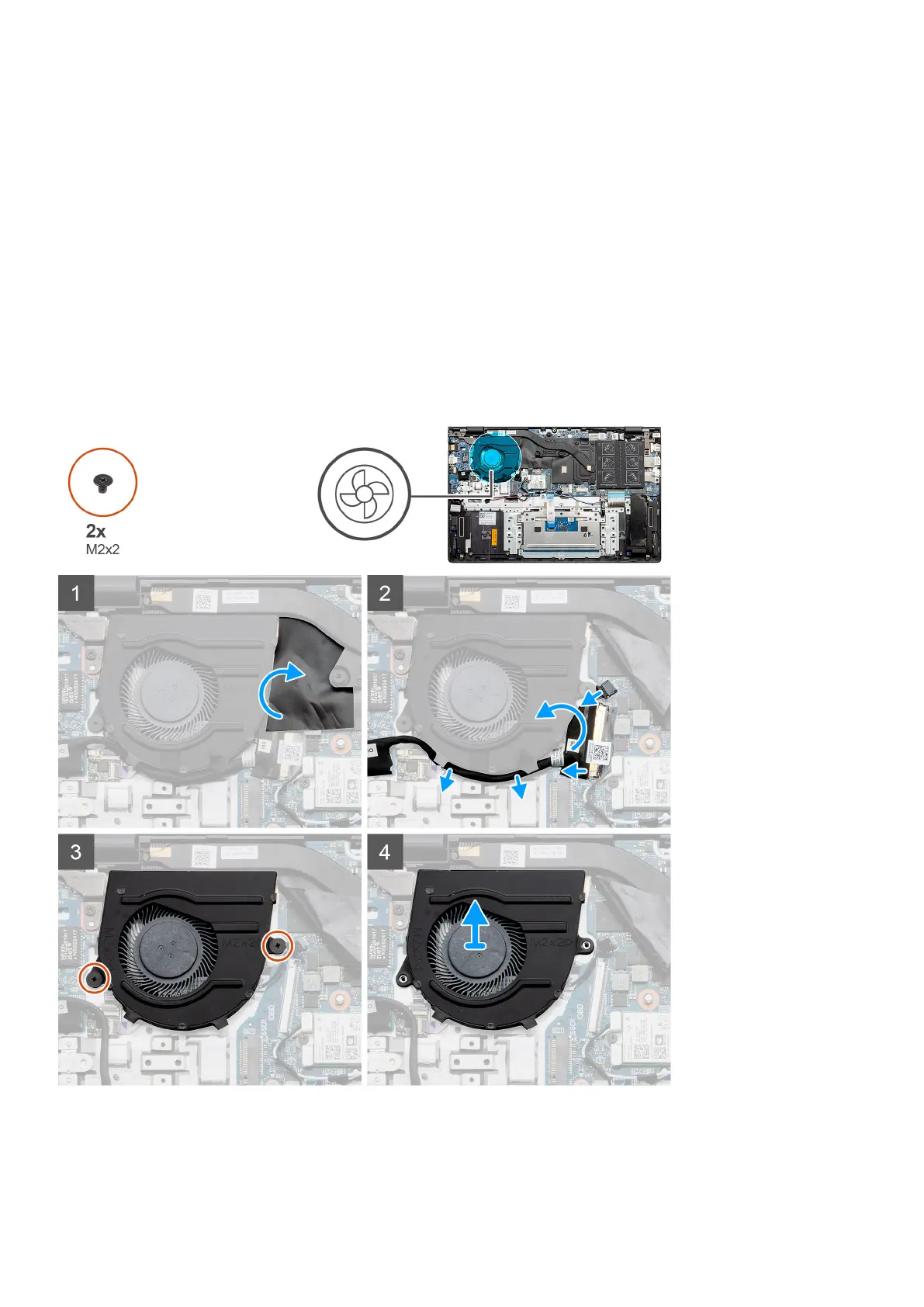

The figure indicates the location of the system fan and provides a visual representation of the removal procedure.
Steps
1. Lift the mylar cover.
2. Disconnect the system fan cable from the system board.
Disassembly and reassembly
47
