Solid-state drive
Removing the M.2 2280 solid-state drive - UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery.
About this task

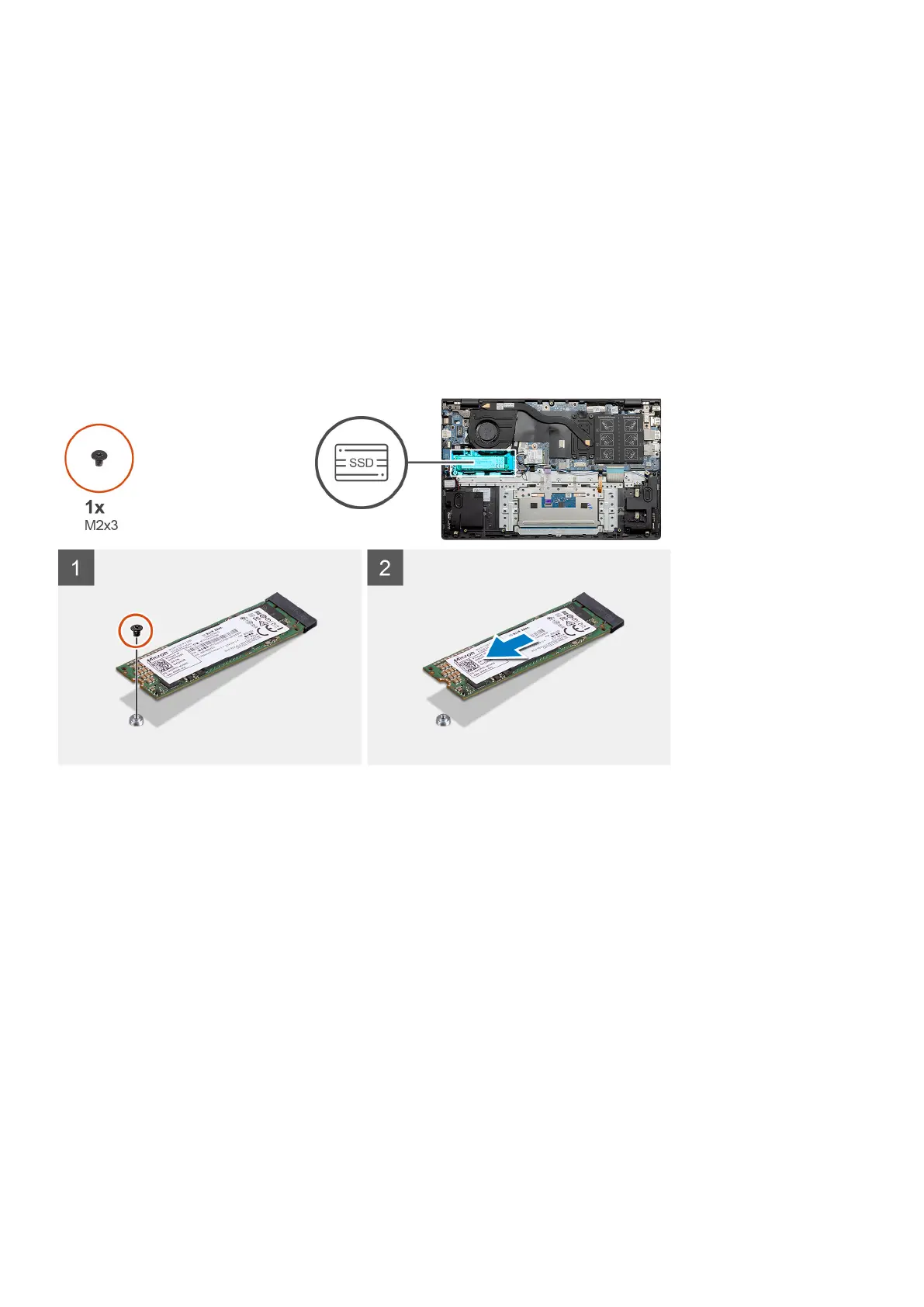

The figure indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the removal
procedure.
Steps
1. Remove the single screw (M2x3) that secures the solid-state drive to the palm-rest and keyboard assembly.
2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board.
Installing the M.2 2280 solid-state drive - UMA
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the solid-state drive bracket and provides a visual representation of the bracket alignment
procedure to accommodate the M.2 2280 solid-state drive.
Disassembly and reassembly
31
