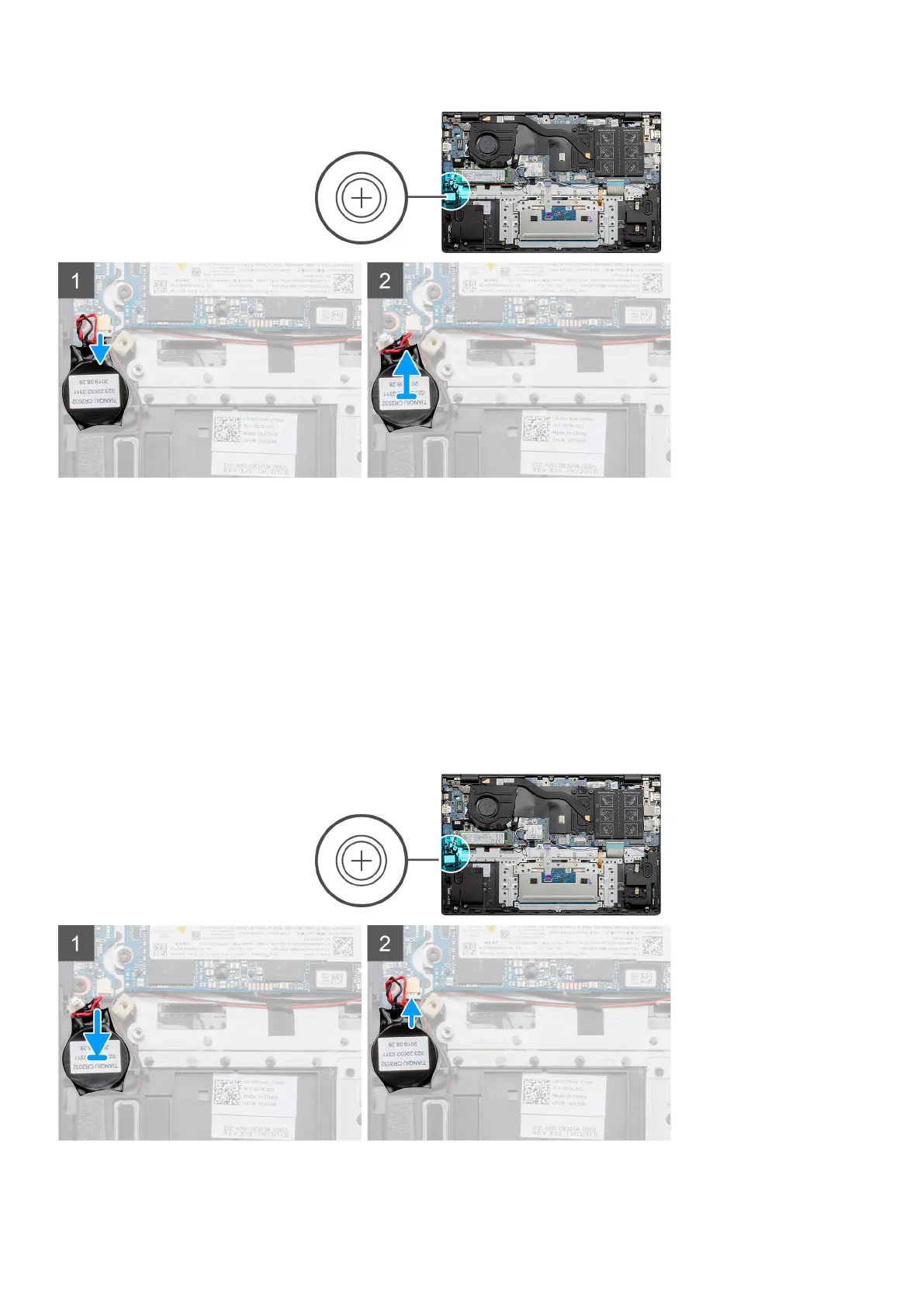

Steps
1. Disconnect the coin-cell battery cable from the I/O board.
2. Peel the coin-cell battery off the palm-rest and keyboard assembly.
Installing the coin-cell battery - UMA
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the coin-cell battery and provides a visual representation of the installation procedure.
Disassembly and reassembly
53
